6 Foot Marine Rotary Steering System Compatible With Single Station Outboard Boats Up To 25Ft Zero

(0) Reviews: Write first review
900-510006A1
OEM PART NUMBERS:
• 900-510006

SPECIFICATIONS:
• Type: ZTS Rotary Steering System Package
• Cable Length: 6 Feet
• Helm Type: Single Station ZTS Rotary Helm
• Bezel: 90-Degree Snap-On Black Bezel
• Shaft: Standard 3/4 Inch Tapered
• Turns Lock-to-Lock: Approximately 3.8
• Maximum Wheel Diameter: 16 Inches (406.4mm)
• Minimum Cable Bend Radius: 8 Inches (203.2mm)
• Cable Core: Galvanized Steel Wire
• Cable Output Ends: Stainless Steel
• Cable Connection: EZ Clip Quick Connect
• Steering Type: Mechanical Rotary Non-Power-Assisted
• Engine Rating: Outboard Engines Up to V-4
• Boat Length: Up to 25 Feet (7.5 Meters)

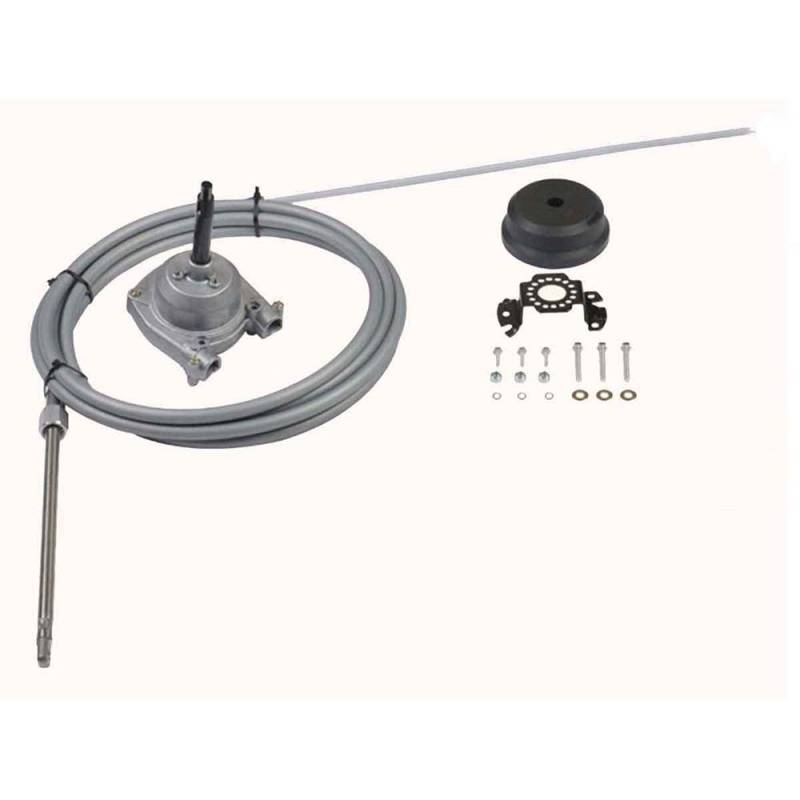

PACKAGE INCLUDES:
• ZTS Rotary Steering Helm (Single Station)
• 90-Degree Snap-On Mounting Bezel
• 6 Foot Galvanized Rotary Steering Cable
• Mounting Hardware and Installation Kit

COMPATIBILITY:
• Single station outboard boats up to 25 feet
• Outboard engines up to V-4 configuration
• Inboard and stern drive boats with rotary steering
• Replaces standard 2900 rotary steering systems
• Compatible with most rotary helm steering wheels up to 16 inches

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $436.33
Sale: $249.33
Save: 43%
Save: $187.00
Qty:
Free Shipping!

Description

MARINE BOAT STEERING APPLICATIONS:

OUTBOARD BOATS:
• Single station outboard boats up to 25 feet (7.5 meters)
• Outboard engines up to V-4 configuration
• Non-power-assisted mechanical rotary steering applications
• Center console, side console, and tiller-to-remote conversion boats
• Aluminum and fiberglass hulls with dash-mounted steering

INBOARD AND STERN DRIVE BOATS:
• Inboard marine engine applications with rotary steering
• Stern drive boats requiring rotary cable steering systems
• Single station configurations only

COMPATIBLE STEERING SYSTEMS:
• Replaces standard 2900 rotary steering systems
• Compatible with most rotary helm systems using 3/4 inch tapered shaft
• Fits dash cutouts for standard rotary helm mounting
• 90-degree and 20-degree bezel options available

CABLE MEASUREMENT GUIDE:
• For replacement: Measure old cable tip to tip and round up to next whole foot
• For new installations: Measure cable routing path from helm to engine and round up to next foot
• Route cable with as few turns as possible keeping bends to 8 inch minimum radius
• Cable lengths available from 6 to 30 feet in 1 foot increments

NOTES:
• Complete package includes helm, bezel, and 6ft steering cable
• Single station use only - dual station requires separate transfer unit
• Maximum steering wheel diameter: 16 inches
• Approximately 3.8 turns lock to lock
• This item fits various applications by part number - verify your OEM part number to ensure fitment
• OEM Part Number: 900-510006

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
  • W18.0000” x H12.0000” x L24.0000”
  • Free Shipping!
