OEM PART NUMBERS:

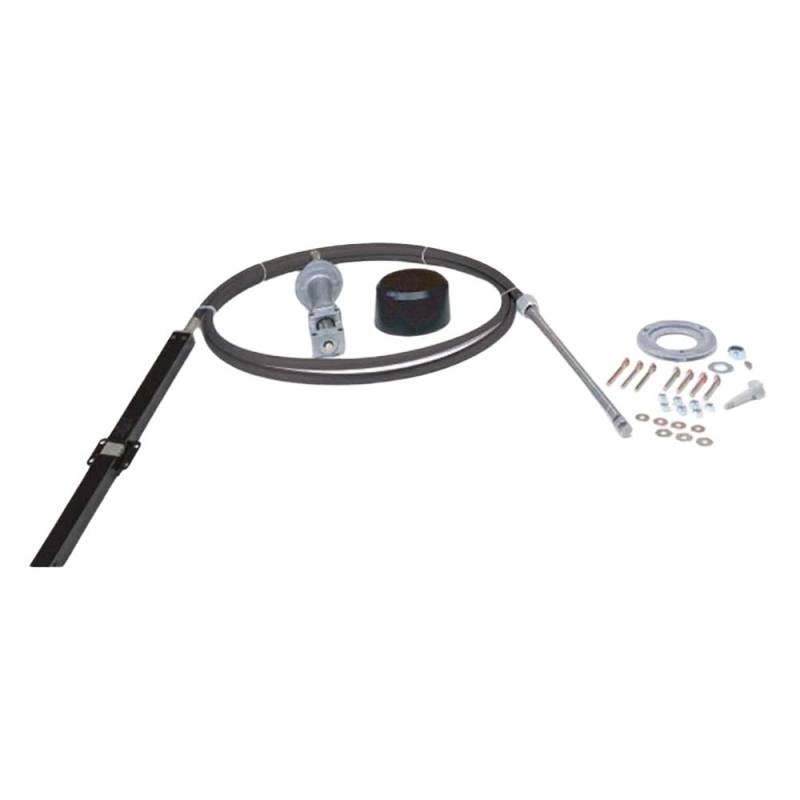

• SeaStar / Teleflex / Dometic: SS14126 (Complete 26ft Steering Kit)
• SeaStar / Teleflex / Dometic: SSC13426 / SSC134-26 (26ft Back Mount Rack Cable)
• SeaStar / Teleflex / Dometic: SH5210P / SH95210P (Back Mount Rack Helm)
• SeaStar / Teleflex / Dometic: SB39526P (90-Degree Bezel Kit)
• UPC: 731957092083
COMPATIBLE CABLE SYSTEMS:
• SSC134XX Series — Single Back Mount Rack Cable (included as SSC13426)
• SSC135XX Series — Dual Back Mount Rack Cable (for boats exceeding 50 MPH)
• SSC154XX Series — TFXtreme Single Back Mount Cable (creates HPS steering system)
SPECIFICATIONS:
• Type: Back Mount Rack & Pinion Mechanical Steering System
• Cable Length: 26 Feet
• Helm Turns: 4.0 Lock-to-Lock
• Steering Shaft: Standard 3/4" Tapered Keyed
• Max Wheel Diameter: 16 Inches
• Cable Core: Stranded, Armored
• Cable Ends: Stainless Steel
• Helm Mounting: 1-5/8" x 2-1/4" Bolt Centers
• Standards: ABYC Compliant, NMMA Certified
• Station: Single Station Only
• Condition: New
APPLICATION SUMMARY:
• Power-assisted sterndrive / I/O boats up to 24 feet
• Outboard motors up to 75 HP w/ tilt tube and link arm
• Small inboard and ski boats w/ power-assisted steering
• Replaces 1984-present Teleflex "The Rack" — no dash modification
• Replaces older Safe-T rotary steering systems
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
