OEM PART NUMBERS:
• SeaStar / Teleflex / Dometic: SS14117 (Complete 17ft Steering Kit)
• SeaStar / Teleflex / Dometic: SSC13417 / SSC134-17 (17ft Back Mount Rack Cable)
• SeaStar / Teleflex / Dometic: SH5210P / SH95210P (Back Mount Rack Helm)
• SeaStar / Teleflex / Dometic: SB39526P (90-Degree Bezel Kit)
• UPC: 731957092083
COMPATIBLE CABLE SYSTEMS:
• SSC134XX Series — Single Back Mount Rack Cable (included as SSC13417)
• SSC135XX Series — Dual Back Mount Rack Cable (for boats exceeding 50 MPH)
• SSC154XX Series — TFXtreme Single Back Mount Cable (creates HPS steering system)
SPECIFICATIONS:

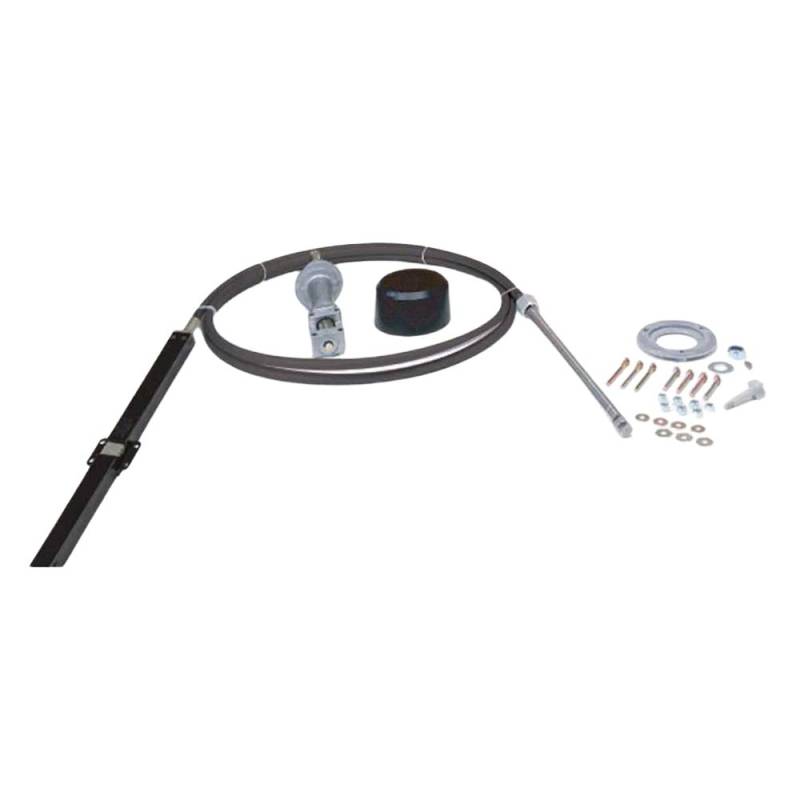

• Type: Back Mount Rack & Pinion Mechanical Steering System
• Cable Length: 17 Feet
• Helm Turns: 4.0 Lock-to-Lock
• Steering Shaft: Standard 3/4" Tapered Keyed
• Max Wheel Diameter: 16 Inches
• Cable Core: Stranded, Armored
• Cable Ends: Stainless Steel
• Helm Mounting: 1-5/8" x 2-1/4" Bolt Centers
• Standards: ABYC Compliant, NMMA Certified
• Station: Single Station Only
• Condition: New
APPLICATION SUMMARY:
• Power-assisted sterndrive / I/O boats up to 24 feet
• Outboard motors up to 75 HP w/ tilt tube and link arm
• Small inboard and ski boats w/ power-assisted steering
• Replaces 1984-present Teleflex "The Rack" — no dash modification
• Replaces older Safe-T rotary steering systems
