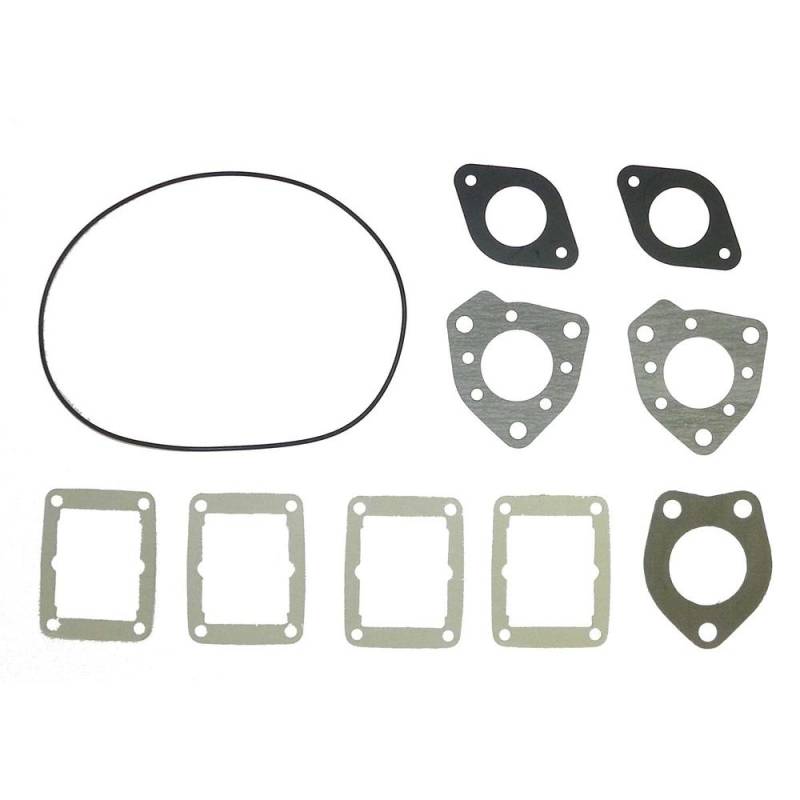

Engine Install Gasket Kit Replacement Compatible With 1987-1990 Kawasaki Jet Ski Sx 650 1989-1990 Ts

007-5010A1
/ Reference Part Numbers:

Kawasaki 11004-3710
110043710
Kawasaki 11009-3747
110093747
Kawasaki 11060-3758
110603758
Kawasaki 11009-3789
110093789

Specifications:

Type: Engine Install Gasket Kit
Engine: 635cc 2-Stroke Twin Cylinder
Bore x Stroke: 76mm x 70mm / 52 HP
Compression: 7.2:1 / Reed Valve Induction
Fuel: Single Keihin CDK Carburetor
Ignition: CDI / Oil Injection
Kit: Complete Engine Gasket Set

Applications:

Kawasaki Jet Ski SX 650 1987-1990, TS 650 1989-1990, X2 650 1989-1990

Engine Installation Gasket Kit Kawasaki 650
Engine installation gasket kit for Kawasaki 650 personal watercraft including SX 650 TS 650 and X2 650 models with the 635cc 2-stroke twin cylinder engine producing 52 HP. The engine has a 76mm bore and 70mm stroke with a 7.2 to 1 compression ratio using crankcase reed valve induction a single Keihin CDK carburetor CDI ignition and oil injection. This complete kit provides all gaskets required for engine installation including head base exhaust and intake gaskets sealing every critical junction. On marine 2-stroke engines the crankcase is part of the induction system making proper gasket sealing essential for correct fuel air ratio. A failed gasket causes lean running overheating and engine damage. Replace all gaskets during any engine installation or major rebuild. Ensure all surfaces are clean and flat before reassembly.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $98.28
Sale: $56.16
Save: 43%
Save: $42.12
Qty:
Free Shipping!

Description

Applications:

Kawasaki 650 Series Engine Install Gasket Kit:

1987-1990 Kawasaki Jet Ski SX 650
1989-1990 Kawasaki Jet Ski TS 650
1989-1990 Kawasaki Jet Ski X2 650

Check your part number to verify this kit fits your model.

Details

Shipping Information

  • Item Requires Shipping
  • 4.0 lbs.
  • W11.5000” x H0.5000” x L17.7500”
  • Free Shipping!
