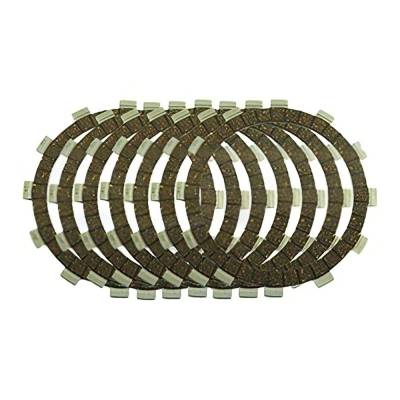

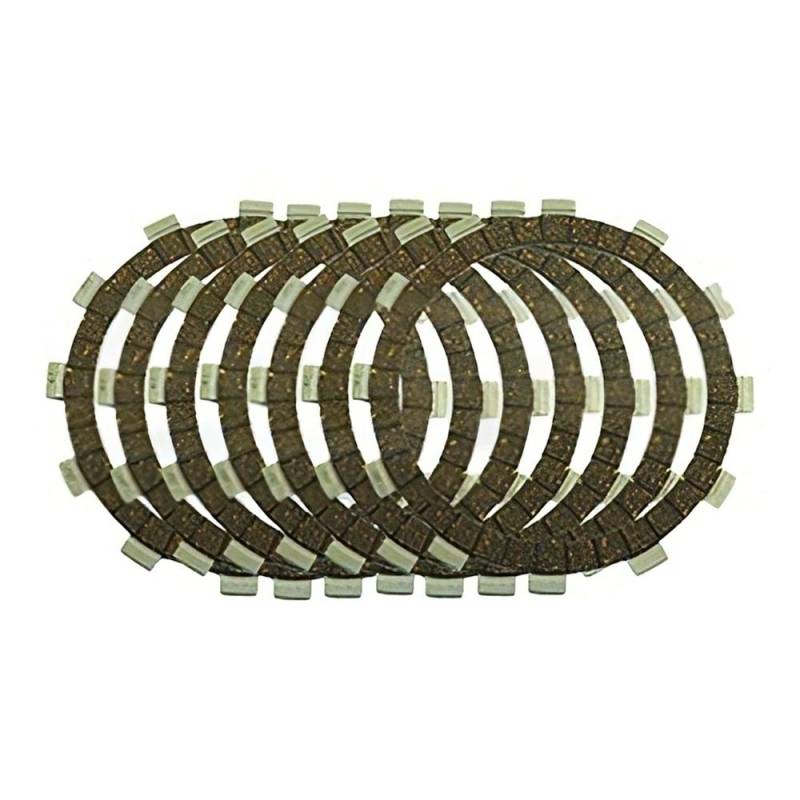

New Clutch Friction Plate Set Compatible With 1981-2000 Kawasaki Mojave 250 Klt 200 250 Atv

Manufacturer Part Number:
09-151

Cross-Reference OEM Part Numbers:
Kawasaki: 13088-1064
Kawasaki: 13088-1065

Kit Specifications:
• Type: Clutch friction plates — complete set
• Number of Plates: 7 friction plates
• Material: Fiber/cork composite on tempered steel cores
• Outer Diameter: 133.84mm
• Inner Diameter: 99mm
• Thickness: 3.0mm

Notes:
• Friction plates only — steel separator plates sold separately
• KLT models were Kawasaki three-wheelers (ATCs)
• Mojave 250 (KSF250) is a sport ATV — same clutch friction plates as KLT series

Kit Contents:
• 7 friction plates clutch friction plates — complete set for one clutch assembly
• Friction Material: Fiber/cork composite — OD: 133.84mm, ID: 99mm, Thickness: 3.0mm
• Precision-cut teeth for smooth engagement and disengagement

Features:
• Direct OEM replacement — matches factory dimensions and tooth count
• High-quality friction material for consistent clutch feel
• Heat-resistant compound prevents glazing and fade under load
• Grooved surface pattern promotes oil circulation and cooling
• Complete set eliminates need to mix old and new plates

When to Replace:
• Clutch slipping under load — engine RPM rises without corresponding acceleration
• Difficulty finding neutral or hard shifting between gears
• Clutch grabbing or chattering during engagement
• Glazed, burnt, or warped friction plates visible during inspection
• Plates worn below minimum thickness specification

Installation Notes:
• Soak new friction plates in engine oil for 30 minutes before installation
• Inspect steel drive plates for warpage — replace if out of specification
• Check clutch spring free length — replace springs if compressed beyond service limit
• Verify clutch basket and hub for notching — file smooth or replace if grooved
• Adjust clutch cable free play after reassembly per service manual
