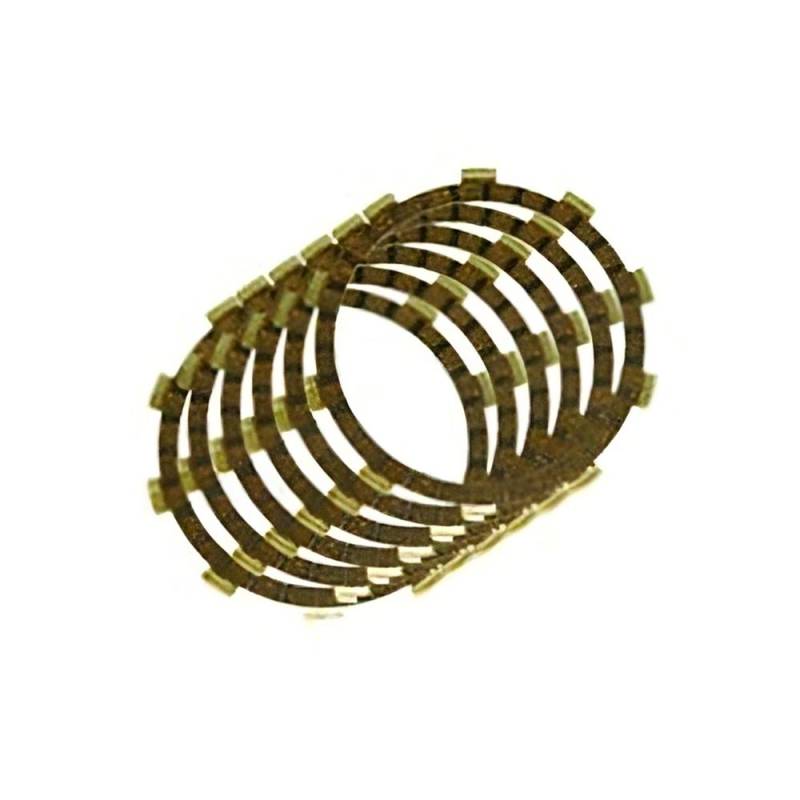

New Clutch Friction Plate Set Compatible With 1986-2000 Honda Trx 350 Trx-Fw 300 Fourtrax 4X4 Atv

Manufacturer Part Number:
09-057

Cross-Reference OEM Part Numbers:
Honda: 22201-MN8-000
Honda: 22201-MN8-700
Honda: 22201-ML4-610
Honda: 22201-KR1-760
Honda: 22201-333-000
Honda: 22201-377-000

Kit Specifications:
• Type: Clutch friction plates — complete set
• Number of Plates: 6 friction plates
• Material: Standard fiber composite on tempered steel cores
• Inner Diameter: 101.2mm (3.98")
• Outer Diameter: 136mm (5.35")
• Thickness: 2.90mm (0.11")
• Groove Pattern: Starburst — for heat dissipation and oil circulation

Notes:
• Friction plates only — steel separator plates sold separately
• TRX-FW 300 is the 4x4 (Four Wheel Drive) model of the Fourtrax 300
• Soak new plates in engine oil for 30 minutes before installation

Kit Contents:
• 6 friction plates clutch friction plates — complete set for one clutch assembly
• Friction Material: Standard fiber composite — ID: 101.2mm, OD: 136mm, Thickness: 2.90mm
• Precision-cut teeth for smooth engagement and disengagement

Features:
• Direct OEM replacement — matches factory dimensions and tooth count
• High-quality friction material for consistent clutch feel
• Heat-resistant compound prevents glazing and fade under load
• Grooved surface pattern promotes oil circulation and cooling
• Complete set eliminates need to mix old and new plates

When to Replace:
• Clutch slipping under load — engine RPM rises without corresponding acceleration
• Difficulty finding neutral or hard shifting between gears
• Clutch grabbing or chattering during engagement
• Glazed, burnt, or warped friction plates visible during inspection
• Plates worn below minimum thickness specification
