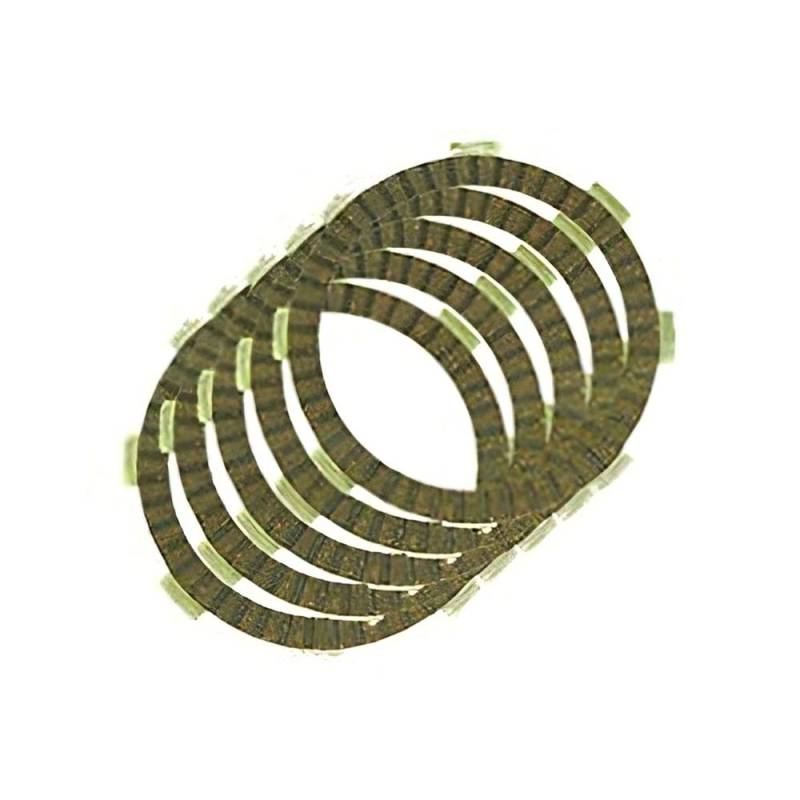

New Clutch Friction Plate Set Compatible With 1988-2002 Kawasaki Bayou 220 Klf220 Utility Atv

Manufacturer Part Number:
09-157

Cross-Reference OEM Part Numbers:
Kawasaki: 13088-1068
Kawasaki: 13088-1098
Kawasaki: 13088-0592

Kit Specifications:
• Type: Clutch friction plates — complete set
• Number of Plates: 5 friction plates
• Material: Kevlar-reinforced fiber composite
• Inner Diameter: 101mm
• Outer Diameter: 124.5mm
• Thickness: 2.8mm
• Teeth: 10

Notes:
• Friction plates only — steel separator plates sold separately
• KLF220 Bayou 220 is a utility ATV — popular farm and trail machine
• Also compatible with Bayou 250 KLF250A (2003-2011) — same clutch

Kit Contents:
• 5 friction plates clutch friction plates — complete set for one clutch assembly
• Friction Material: Kevlar-reinforced fiber composite — ID: 101mm, OD: 124.5mm, Thickness: 2.8mm
• Precision-cut teeth for smooth engagement and disengagement

Features:
• Direct OEM replacement — matches factory dimensions and tooth count
• High-quality friction material for consistent clutch feel
• Heat-resistant compound prevents glazing and fade under load
• Grooved surface pattern promotes oil circulation and cooling
• Complete set eliminates need to mix old and new plates

When to Replace:
• Clutch slipping under load — engine RPM rises without corresponding acceleration
• Difficulty finding neutral or hard shifting between gears
• Clutch grabbing or chattering during engagement
• Glazed, burnt, or warped friction plates visible during inspection
• Plates worn below minimum thickness specification

Installation Notes:
• Soak new friction plates in engine oil for 30 minutes before installation
• Inspect steel drive plates for warpage — replace if out of specification
• Check clutch spring free length — replace springs if compressed beyond service limit
• Verify clutch basket and hub for notching — file smooth or replace if grooved
• Adjust clutch cable free play after reassembly per service manual
