OEM PART NUMBERS:
• BRP: 290641110 / 420641110 (Cylinder Head Bolts, 8 Req'd, M11x147mm)
• BRP: 290641120 / 420641120 (Crankcase Bolts, 8 Req'd, M10x82mm)
• BRP: 711641080 / 420641080 (Rocker Arm Bolts, 6 Req'd, M8x72mm)
• BRP: 420640990 / 420640991 (Connecting Rod Bolts, 6 Req'd)
SPECIFICATIONS:
• Type: Complete Engine Hardware Bolt Kit
• Kit Contents: 28 Bolts Total
• Cylinder Head Bolts: 8x M11x147mm Flanged Torx with Washers (TTY Stretch Type)
• Crankcase Bolts: 8x M10x82mm Flanged Hex
• Rocker Arm Bolts: 6x M8x72mm Flanged Hex
• Connecting Rod Bolts: 6x Flanged Hex
• Material: High-Strength Alloy Steel, Black Oxide Finish
• Engine Fitment: Rotax 4-TEC 1503cc (130-260HP) / 1630cc ACE (100-325HP)
• Condition: New
APPLICATION:
• Sea-Doo Challenger/SE/SP/Wake/S/C Jet Boats 1503cc (2005-2012)
• Sea-Doo Cruise 18/21 100-230HP 1630cc (2022-2025)
• Sea-Doo Base/Base Compact 16/19 100-170HP 1630cc (2022-2025)
• Sea-Doo Explorer Pro 170-300HP 1630cc (2023-2024)
• Sea-Doo Fish Pro/Scout/Sport/Trophy 130-170HP 1503cc/1630cc (2019-2025)
• Sea-Doo GTI 130 1503cc (2008-2016)
• All Sea-Doo models with Rotax 4-TEC 1503cc or 1630cc engine (2002-2025)

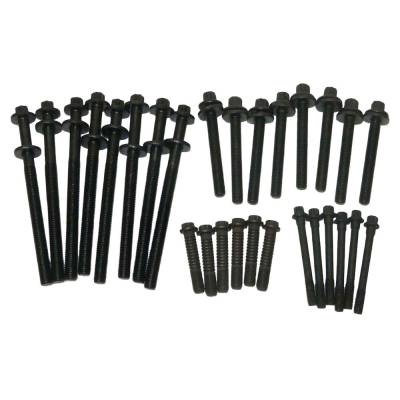

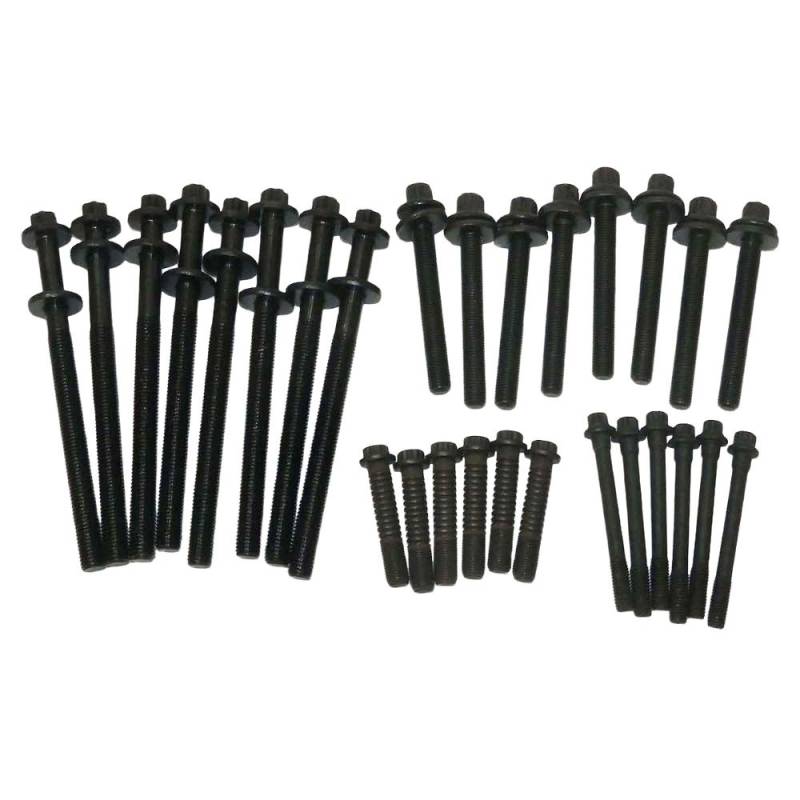

28-Piece Engine Hardware Bolt Kit - Sea-Doo Rotax 4-TEC 1503cc/1630cc
Complete 28-piece engine hardware bolt kit for Sea-Doo personal watercraft and jet boats equipped with Rotax 4-TEC 1503cc and 1630cc engines. This comprehensive kit includes all critical engine fasteners: 8 cylinder head bolts (BRP 290641110/420641110, M11x147mm flanged Torx with washers), 8 crankcase bolts (BRP 290641120/420641120, M10x82mm), 6 rocker arm bolts (BRP 711641080/420641080, M8x72mm), and 6 connecting rod bolts (BRP 420640990/420640991). The cylinder head bolts are torque-to-yield (TTY) stretch type and MUST be replaced any time the cylinder head is removed to prevent torque loss and potential engine failure. Essential for complete engine rebuilds on Challenger, Cruise, Base, Explorer Pro, Fish Pro, and GTI models. High-strength alloy steel construction with black oxide finish for corrosion resistance in marine environments.
