OEM PART NUMBERS:
• Yamaha: 5ND-F518F-00-00 / 5NDF518F0000
• Yamaha: 5ND-F510F-00-00 / 5NDF510F0000
• Yamaha: 5KM-2510J-00-00 / 5KM2510J0000

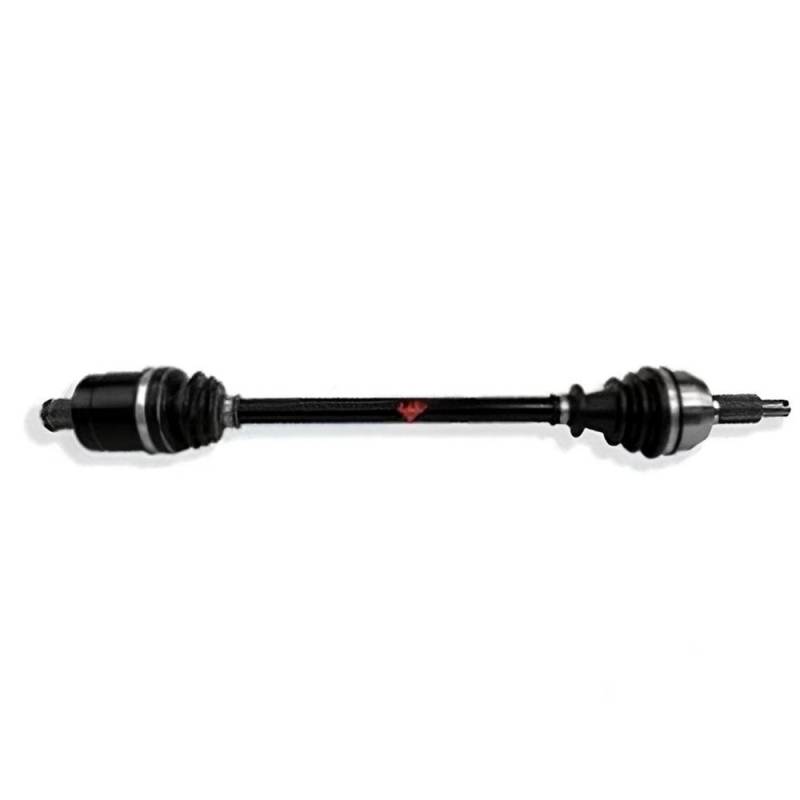

SPECIFICATIONS:
• Axle Position: Front Left (Driver Side)
• Shaft Type: CV (Constant Velocity) Double Offset Joint
• Inboard Splines: 21 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 507 mm (20.0")
• Shaft Diameter: 3/4" (19mm)
• Thread Size: M20 x 1.5
• Material: 4140 Chromoly Steel
• Condition: New
YAMAHA ATV APPLICATIONS:
• Grizzly 450 Auto 4x4 421cc Liquid-Cooled SOHC Single-Cyl 4-Stroke (2007)
• Kodiak 450 Auto 4x4 421cc Liquid/Air-Cooled SOHC Single-Cyl 4-Stroke (2003-2006)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
