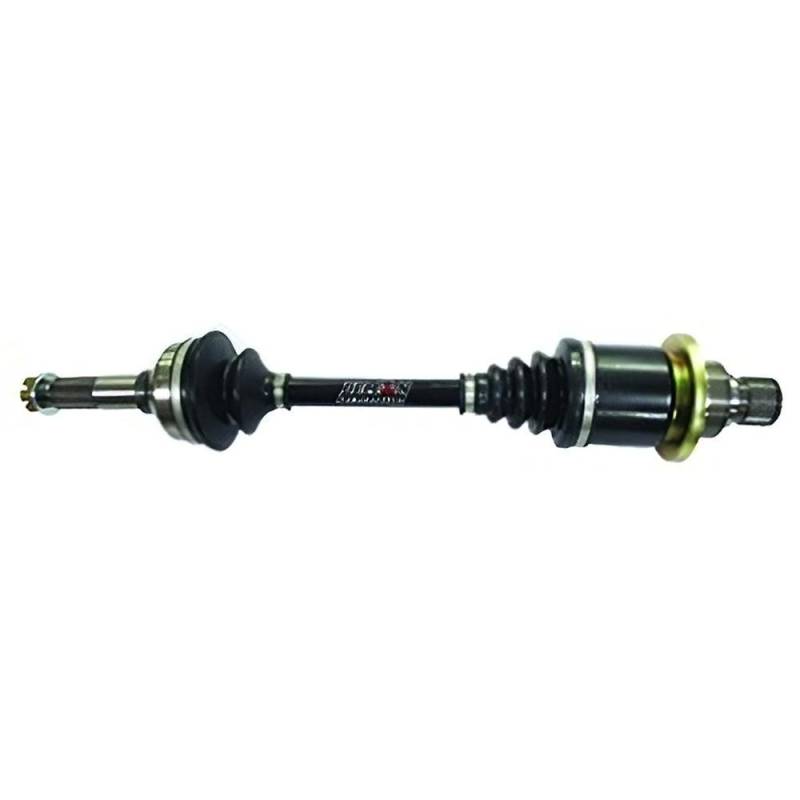

Heavy Duty 2006-2009 Compatible With Yamaha Rhino Rhino 450 Auto Rear Left Cv Axle 421Cc/660Cc 4X4

OEM PART NUMBERS:
• Yamaha: 5UG-F531H-20-00 / 5UGF531H2000
• Yamaha: 5UG-F531H-21-00 / 5UGF531H2100
• Yamaha: 5UG-F531H-01-00 / 5UGF531H0100
• Yamaha: 5UG-F531H-11-00 / 5UGF531H1100
• Yamaha: 5UG-F530T-20-00 / 5UGF530T2000

SPECIFICATIONS:
• Axle Position: Rear Left (Driver Side) - Heavy Duty
• Shaft Type: CV (Constant Velocity) Heavy Duty Double Offset Joint
• Inboard Splines: 39 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 546 mm (21.5")
• Shaft Diameter: 13/16" (21mm)
• Thread Size: M24 x 1.5
• Material: 4340 Chromoly Steel (Heavy Duty)
• Condition: New

YAMAHA UTV APPLICATIONS:
• Rhino 450 Auto 4x4 421cc Liquid-Cooled SOHC 5-Valve Single-Cyl 4-Stroke (2006-2009)
• Rhino 660 Auto 4x4 660cc Liquid-Cooled SOHC 5-Valve Single-Cyl 4-Stroke (2006-2007)
• Rhino 700 2008-2013 (rear left)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
