OEM PART NUMBERS:
• Yamaha: 1D9-F531H-00-00 / 1D9F531H0000
• Yamaha: 1D9-F531H-02-00 / 1D9F531H0200
• Yamaha: 1D9-F531H-03-00 / 1D9F531H0300
• Yamaha: 1D9-F510F-00-00 / 1D9F510F0000

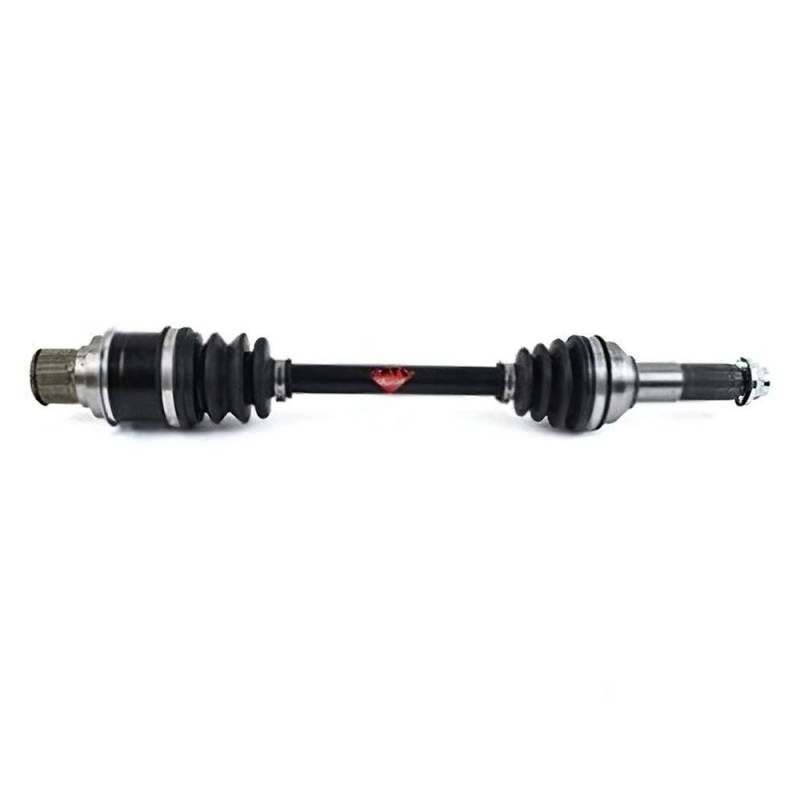

SPECIFICATIONS:
• Axle Position: Rear Left or Right (Interchangeable)
• Shaft Type: CV (Constant Velocity) Double Offset Joint
• Inboard Splines: 39 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 515 mm (20.29")
• Shaft Diameter: 3/4" (19mm)
• Thread Size: M20 x 1.5
• Material: 4140 Chromoly Steel
• Condition: New
YAMAHA ATV APPLICATIONS:
• Grizzly 400 Auto 4x4 421cc Liquid-Cooled SOHC Single-Cyl 4-Stroke (2007)
• Grizzly 450 Auto 4x4 421cc Liquid-Cooled SOHC Single-Cyl 4-Stroke (2007)
• Grizzly 350, Kodiak 400/450 (various years)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
