OEM PART NUMBERS:
• Yamaha: 28P-2518E-10-00 / 28P2518E1000
• Yamaha: 28P-2510F-04-00 / 28P2510F0400
• Yamaha: 28P-2530V-00-00 / 28P2530V0000
• Yamaha: 28P-2530V-01-00 / 28P2530V0100
• Yamaha: 3B4-2530V-00-00 / 3B42530V0000

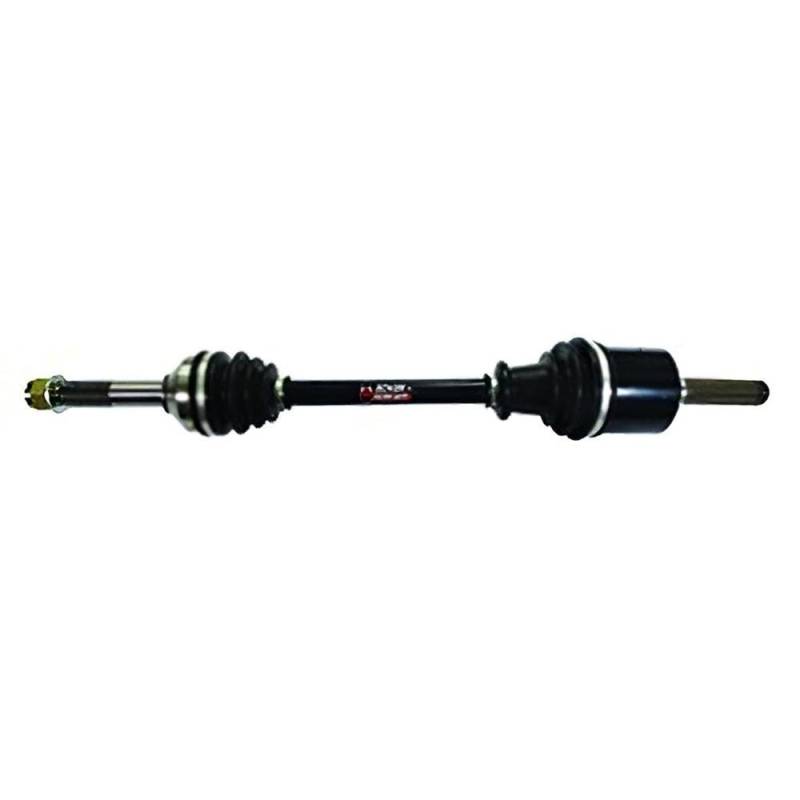

SPECIFICATIONS:
• Axle Position: Rear Left or Right (Interchangeable) - Heavy Duty
• Shaft Type: CV (Constant Velocity) Heavy Duty Double Offset Joint
• Inboard Splines: 23 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 552 mm (21.75")
• Shaft Diameter: 13/16" (21mm)
• Thread Size: M20 x 1.5
• Material: 4340 Chromoly Steel (Heavy Duty)
• Condition: New
YAMAHA ATV APPLICATIONS:
• Grizzly 700 FI Auto 4x4 686cc Liquid-Cooled SOHC 4-Valve Single-Cyl 4-Stroke (2007-2013)
• YFM700FG Grizzly 700
• EPS, Hunter, Special Edition variants
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
