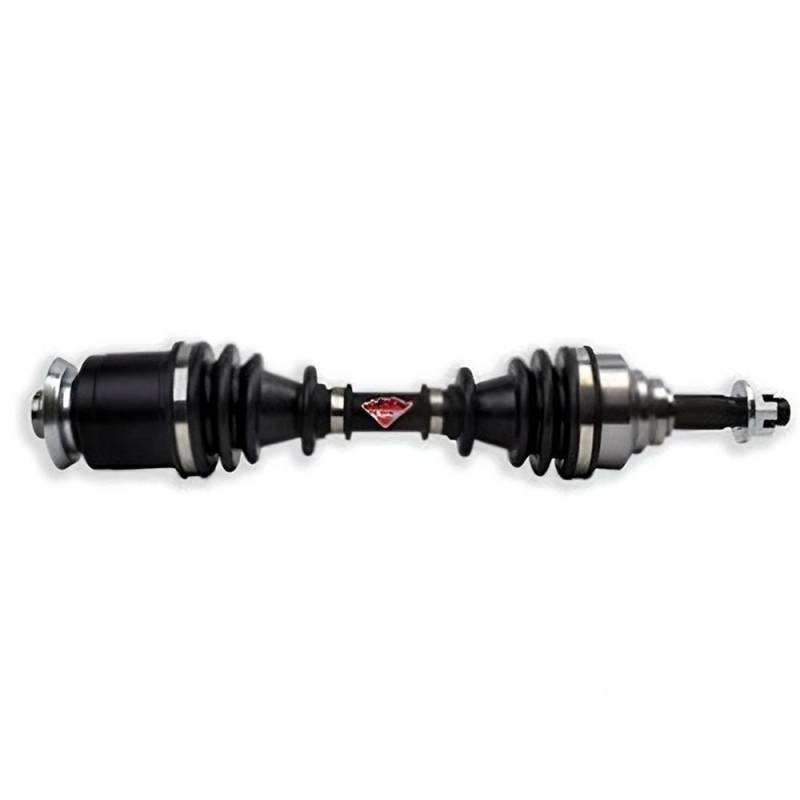

Rear Cv Axle Compatible With 2005 Arctic Cat 300 4X4 280Cc Suzuki Engine 250 4X4 249Cc 250 2X4

OEM PART NUMBERS:
• Arctic Cat: 0502-543 / 0502543 (original)
• Arctic Cat: 1502-540 / 1502540 (supersedes 0502-543)

SPECIFICATIONS:
• Type: Rear CV Axle / Constant Velocity Axle Shaft
• Position: Rear Left or Right (Fits Both Sides)
• Inboard CV Joint Spline Count: 22
• Outboard CV Joint Spline Count: 27
• Compressed Overall Axle Length: 429.5mm (16 15/16")
• Condition: New

2005 ARCTIC CAT ATV APPLICATIONS:
• 300 4x4 280cc Single-Cylinder Liquid-Cooled Suzuki (2005)
• 250 4x4 249cc Single-Cylinder Air-Cooled (2005)
• 250 2x4 249cc Single-Cylinder Air-Cooled (2005)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
