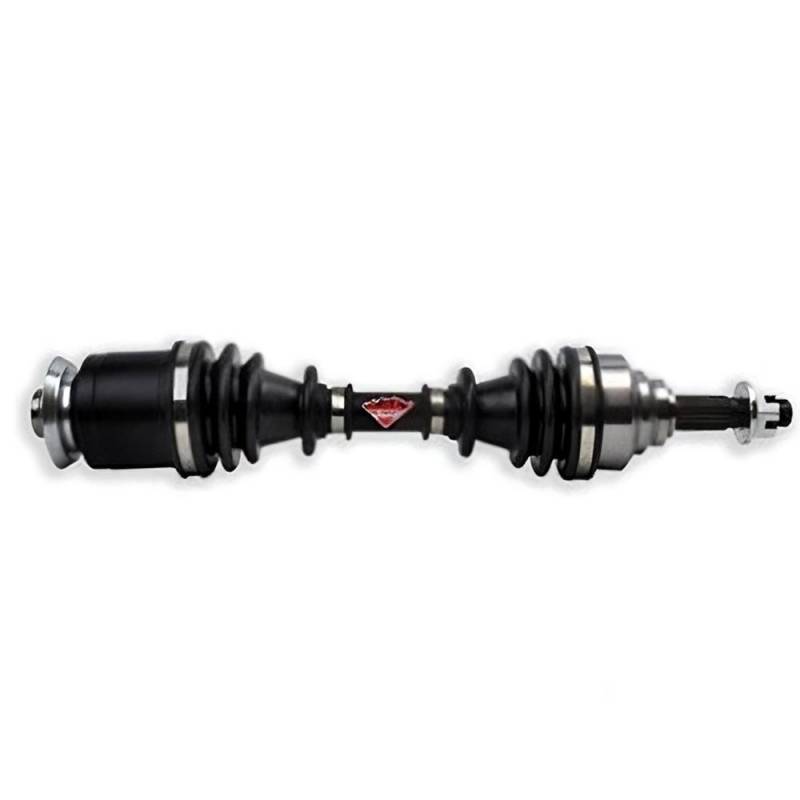

Front Driver Passenger Cv Axle Drive Shaft Compatible With Arctic Cat 500 Tbx Fis 400 Act Mrp 375

(0) Reviews: Write first review
PAXL-1062A3
OEM PART NUMBERS:
• Arctic Cat: 0402-987 / 0402987
• Arctic Cat: 0402-365 / 0402365
• Arctic Cat: 1502-528 / 1502528
• Arctic Cat: 1502-530 / 1502530

SPECIFICATIONS:
• Type: Front CV Axle Drive Shaft Assembly
• Position: Front Left or Right (Driver or Passenger Side)
• Compressed Length: 497mm (19 9/16")
• Inboard Splines: 21T (2 11/16" Diameter)
• Outboard Splines: 21T (2 3/4" Diameter)
• Shaft Diameter: 13/16"
• Thread: M18x1.5
• Includes: Complete Assembly with Inboard/Outboard CV Joints and Protective Neoprene Boots
• Condition: New

ARCTIC CAT ATV APPLICATIONS (2002-2004):
• 250 2X4/4X4 246cc Single-Cylinder (2002-2004)
• 300 2X4/4X4/MRP 280cc Single-Cylinder (2002-2004)
• 375 2X4/4X4 Automatic 376cc Single-Cylinder SOHC (2002)
• 400 4X4 Manual/ACT Auto/ACT MRP 376cc Single-Cylinder SOHC (2002-2004)
• 500 4X4 FIS Auto/Manual / TBX 493cc Single-Cylinder SOHC (2002)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $322.37
Sale: $184.21
Save: 43%
Save: $138.16
Qty:
Free Shipping!

Description

ARCTIC CAT 250 ATV:
• Arctic Cat 250 4X4 246cc Single-Cylinder 4-Stroke Liquid-Cooled (2002-2004)
• Arctic Cat 250 2X4 246cc Single-Cylinder 4-Stroke Liquid-Cooled (2002-2003)

ARCTIC CAT 300 ATV:
• Arctic Cat 300 4X4 280cc Single-Cylinder 4-Stroke Liquid-Cooled (2002-2004)
• Arctic Cat 300 2X4 280cc Single-Cylinder 4-Stroke Liquid-Cooled (2002-2003)
• Arctic Cat 300 MRP 280cc Single-Cylinder 4-Stroke Liquid-Cooled (2004)

ARCTIC CAT 375 ATV:
• Arctic Cat 375 4X4 Automatic 376cc Single-Cylinder 4-Stroke SOHC Air/Oil-Cooled (2002)
• Arctic Cat 375 2X4 376cc Single-Cylinder 4-Stroke SOHC Air/Oil-Cooled (2002)

ARCTIC CAT 400 ATV:
• Arctic Cat 400 4X4 Manual 376cc Single-Cylinder 4-Stroke SOHC Air/Oil-Cooled (2002-2004)
• Arctic Cat 400 4X4 ACT Automatic 376cc Single-Cylinder SOHC Air/Oil-Cooled (2003-2004)
• Arctic Cat 400 4X4 ACT MRP Automatic 376cc Single-Cylinder SOHC Air/Oil-Cooled (2004)
• Arctic Cat 400 4X4 ACT MRP Manual 376cc Single-Cylinder SOHC Air/Oil-Cooled (2004)

ARCTIC CAT 500 ATV:
• Arctic Cat 500 4X4 FIS Automatic 493cc Single-Cylinder 4-Stroke SOHC Liquid-Cooled (2002)
• Arctic Cat 500 4X4 FIS Manual 493cc Single-Cylinder 4-Stroke SOHC Liquid-Cooled (2002)
• Arctic Cat 500 4X4 TBX Automatic 493cc Single-Cylinder 4-Stroke SOHC Liquid-Cooled (2002)

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W4.0000” x H4.0000” x L32.0000”
  • Free Shipping!
