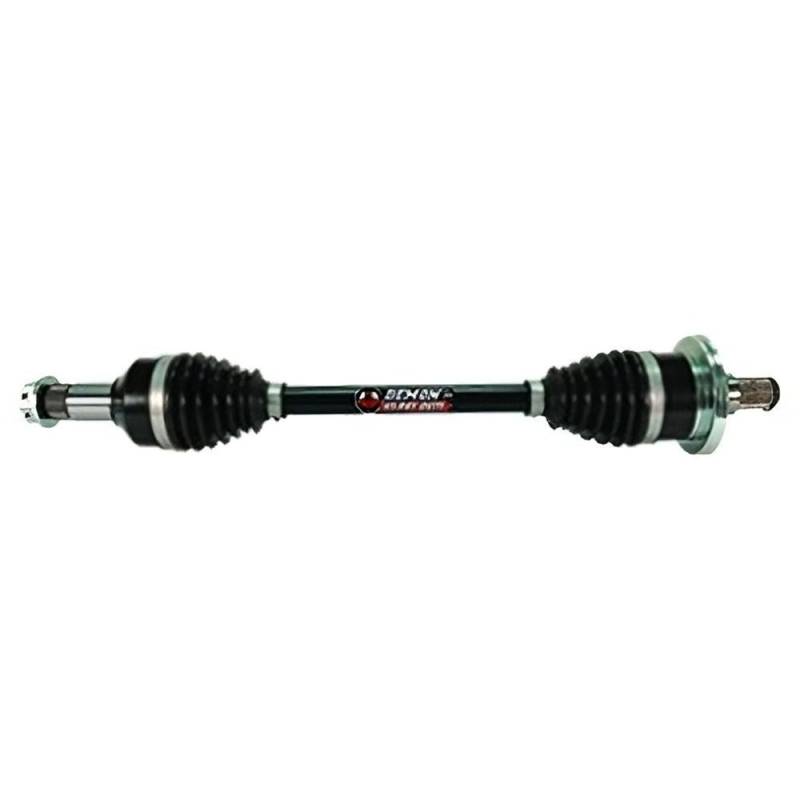

Front Right Cv Axle Compatible With Arctic Cat Trv 700 2008-2014 695Cc Trv 500 2006-2014 493Cc Trv

(0) Reviews: Write first review
PAXL-1059HDA5
OEM PART NUMBERS:
• Arctic Cat: 0502-812 / 0502812 (earliest)
• Arctic Cat: 1502-344 / 1502344
• Arctic Cat: 1502-800 / 1502800
• Arctic Cat: 1502-874 / 1502874 (current — supersedes all above)

SPECIFICATIONS:
• Type: Front CV Axle / Constant Velocity Axle Shaft
• Position: Front Right (Passenger Side)
• Inboard CV Joint Spline Count: 24
• Outboard CV Joint Spline Count: 27
• Compressed Overall Axle Length: 548mm (21 9/16")
• Shaft Diameter: 7/8"
• Thread Measurement: M18x1.5
• Material: 40Cr Steel
• Boot Material: Neoprene
• Locking Detent Balls and Circlip on Gearcase End
• Condition: New

ARCTIC CAT ATV APPLICATIONS (2006-2014):
• Thundercat 1000 H2 / 1000 TRV / 1000 TRV Cruiser / MudPro 1000 (2008-2010)
• 700 EFI (2006-2008), 700 H1 (2008-2014), 700 TRV (2008-2014)
• 700 Diesel / 700 Super Duty Diesel (2007-2014), MudPro 700 (2009-2014)
• 650 H1 (2006-2012), 650 H1 TBX (2006-2007), 650 V2 (2006), MudPro 650 (2010-2011)
• 550 H1 EFI / 550 TRV / 550 Limited / 550 GT (2009-2014)
• 500 Auto/Manual / 500 TBX / 500 TRV / 500 XT (2006-2014)
• 450 H1 EFI / 450 TRV / 450 GT / 450 Limited (2010-2012)
• 400 Auto/Manual / 400 TBX / 400 TRV / 400 TRV Core (2006-2014)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $490.40
Sale: $280.23
Save: 43%
Save: $210.17
Qty:
Free Shipping!

Description

ARCTIC CAT 1000 SERIES:
• Thundercat 1000 H2 951cc V-Twin EFI 4x4 (2008-2010)
• 1000 TRV H2 EFI 951cc V-Twin 4x4 (2009-2010)
• 1000 TRV Cruiser H2 EFI 951cc V-Twin 4x4 (2009-2010)
• 1000 MudPro H2 EFI 951cc V-Twin 4x4 (2010)

ARCTIC CAT 700 SERIES:
• 700 EFI 695cc Single-Cylinder H1 4x4 (2006-2008)
• 700 H1 EFI 695cc Single-Cylinder 4x4 (2008-2014)
• 700 TRV H1 EFI 695cc Single-Cylinder 4x4 (2008-2014)
• 700 TRV Cruiser H1 EFI 695cc Single-Cylinder 4x4 (2009-2010)
• 700 Diesel 686cc Lombardini Diesel 4x4 (2007-2014)
• 700 Super Duty Diesel 686cc Lombardini 4x4 (2010-2014)
• MudPro 700 H1 EFI 695cc Single-Cylinder 4x4 (2009-2014)

ARCTIC CAT 650 SERIES:
• 650 H1 641cc Single-Cylinder SOHC 4x4 (2006-2012)
• 650 H1 TBX 641cc Single-Cylinder SOHC 4x4 (2006-2007)
• 650 V2 633cc V-Twin SOHC 4x4 (2006)
• MudPro 650 H1 641cc Single-Cylinder 4x4 (2010-2011)

ARCTIC CAT 550 SERIES:
• 550 H1 EFI 545cc Single-Cylinder 4x4 (2009-2014)
• 550 EPS 545cc Single-Cylinder 4x4 (2010-2011)
• 550 Limited / Limited EPS 545cc Single-Cylinder 4x4 (2009-2014)
• 550 GT EPS 545cc Single-Cylinder 4x4 (2012)
• 550 TRV 545cc Single-Cylinder 4x4 (2009-2014)
• 550 TRV Cruiser EPS 545cc Single-Cylinder 4x4 (2011-2012)
• 550 TRV GT EPS 545cc Single-Cylinder 4x4 (2010-2012)
• 550 TRV Limited / Limited EPS 545cc Single-Cylinder 4x4 (2009-2014)
• 550 TRV XT EPS 545cc Single-Cylinder 4x4 (2013-2014)

ARCTIC CAT 500 SERIES:
• 500 4x4 Auto/Manual 493cc Single-Cylinder (2006-2014)
• 500 TBX Automatic 493cc Single-Cylinder 4x4 (2006)
• 500 Automatic Limited 493cc Single-Cylinder 4x4 (2006)
• 500 TRV 493cc Single-Cylinder 4x4 (2006-2014)
• 500 XT 493cc Single-Cylinder 4x4 (2013-2014)

ARCTIC CAT 450 SERIES:
• 450 H1 EFI 443cc Single-Cylinder 4x4 (2010-2012)
• 450 TRV 443cc Single-Cylinder 4x4 (2011-2012)
• 450 GT 443cc Single-Cylinder 4x4 (2012)
• 450 Limited 443cc Single-Cylinder 4x4 (2011)

ARCTIC CAT 400 SERIES:
• 400 4x4 Auto/Manual 376cc Single-Cylinder (2006-2008)
• 400 Limited Automatic 376cc Single-Cylinder 4x4 (2006-2007)
• 400 TBX Automatic 376cc Single-Cylinder 4x4 (2006)
• 400 TRV 376cc Single-Cylinder 4x4 (2006-2014)
• 400 TRV Core 376cc Single-Cylinder 4x4 (2013-2014)
