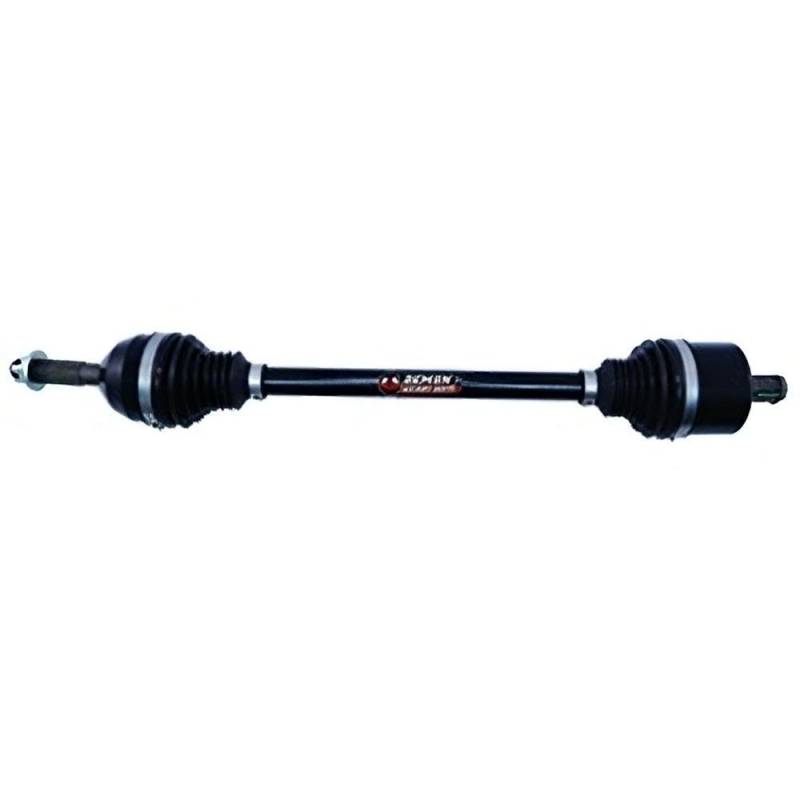

Heavy Duty 2003-2008 Compatible With Yamaha Grizzly Grizzly 660 Auto Front Right Cv Axle 660Cc 4X4

OEM PART NUMBERS:
• Yamaha: 5KM-2510J-20-00 / 5KM2510J2000
• Yamaha: 5KM-2510F-10-00 / 5KM2510F1000
• Yamaha: 5KM-2510F-11-00 / 5KM2510F1100

SPECIFICATIONS:
• Axle Position: Front Right (Passenger Side) - Heavy Duty
• Shaft Type: CV (Constant Velocity) Heavy Duty Double Offset Joint
• Inboard Splines: 21 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 491 mm (19.35")
• Shaft Diameter: 13/16" (21mm)
• Thread Size: M20 x 1.5
• Material: 4340 Chromoly Steel (Heavy Duty)
• Condition: New

YAMAHA ATV APPLICATIONS:
• Grizzly 660 Auto 4x4 660cc Liquid-Cooled SOHC 5-Valve Single-Cyl 4-Stroke (2003-2008)
• YFM660F, YFM660FA, YFM660FG, YFM660FH, YFM660FLE

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
