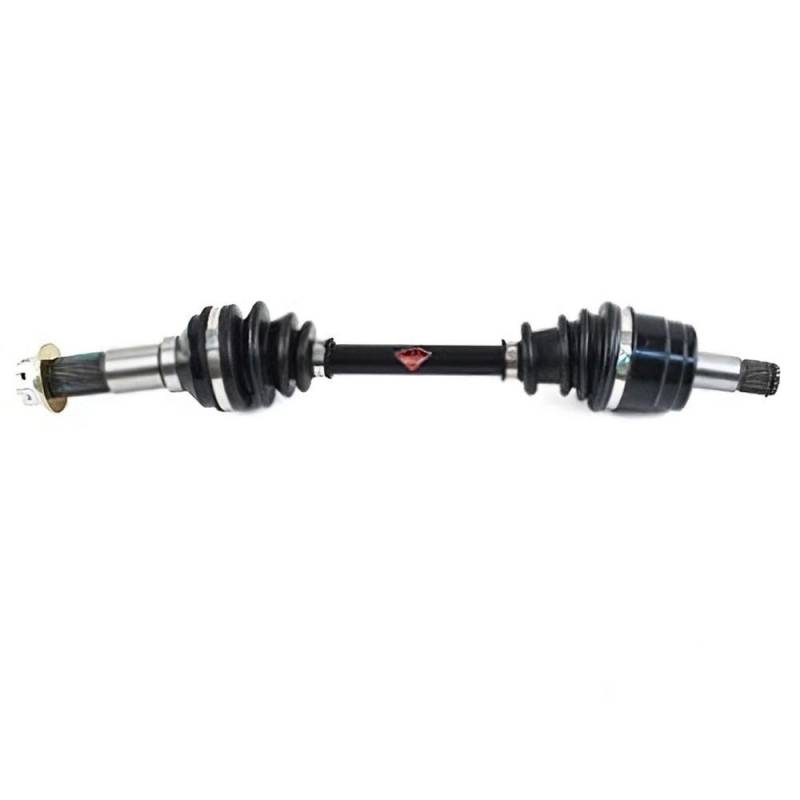

OEM Grade Front Right Cv Axle Compatible With Yamaha Atv Grizzly 450 Auto Grizzly Kodiak 421Cc

PAXL-1090A2
OEM PART NUMBERS:
• Yamaha: 5ND-F518G-00-00 / 5NDF518G0000

SPECIFICATIONS:
• Axle Position: Front Right (Passenger Side)
• Shaft Type: CV (Constant Velocity) Double Offset Joint
• Inboard Splines: 21 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 507 mm (20.0")
• Shaft Diameter: 3/4" (19mm)
• Thread Size: M20 x 1.5
• Material: 4140 Chromoly Steel
• Condition: New

YAMAHA ATV APPLICATIONS:
• Grizzly 450 Auto 4x4 421cc Liquid-Cooled SOHC Single-Cyl 4-Stroke (2007)
• Kodiak 450 Auto 4x4 421cc Liquid/Air-Cooled SOHC Single-Cyl 4-Stroke (2003-2006)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $322.37
Sale: $184.21
Save: 43%
Save: $138.16
Qty:
Free Shipping!

Description

YAMAHA GRIZZLY / KODIAK 450 4X4:
• Grizzly 450 Auto 4x4 421cc Liquid-Cooled SOHC Single-Cyl 4-Stroke (2007)
• Kodiak 450 Auto 4x4 421cc Liquid/Air-Cooled SOHC Single-Cyl 4-Stroke (2003-2006)

CV AXLE SPECIFICATIONS:
• Axle Position: Front Right (Passenger Side)
• Shaft Type: CV (Constant Velocity) Double Offset Joint
• Inboard Splines: 21 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 507 mm (20.0")
• Shaft Diameter: 3/4" (19mm)
• Thread Size: M20 x 1.5
• Material: 4140 Chromoly Steel
• CV Joints: Inner & Outer CV Joints with Cages and Bearings
• Boots: Neoprene CV Boots with Clamps
• Installation: Direct Bolt-On OEM Replacement
• Condition: New
