OEM PART NUMBERS:
• Yamaha: 4KB-2510F-00-00 / 4KB2510F0000
• Yamaha: 4KB-2510J-00-00 / 4KB2510J0000
SPECIFICATIONS:

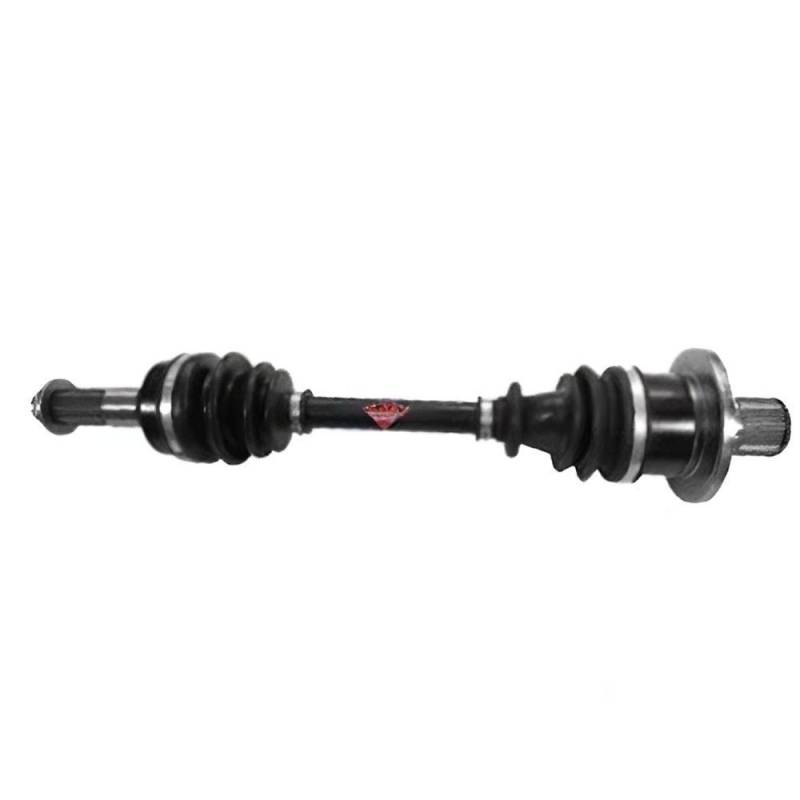

• Axle Position: Front Left or Right (Interchangeable)
• Shaft Type: CV (Constant Velocity) Double Offset Joint
• Inboard Splines: 20 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 504 mm (19.81")
• Shaft Diameter: 13/16" (21mm)
• Thread Size: M16 x 1.5
• Material: 4140 Chromoly Steel
• Condition: New
YAMAHA ATV APPLICATIONS:
• Big Bear 350 4x4 348cc Air-Cooled SOHC 2-Valve Single-Cyl 4-Stroke (1997-1999)
• Big Bear 400 4x4 386cc Air-Cooled SOHC 2-Valve Single-Cyl 4-Stroke (2000-2001)
• YFM350FW Big Bear 4WD
• YFM400FW Big Bear 4WD
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
