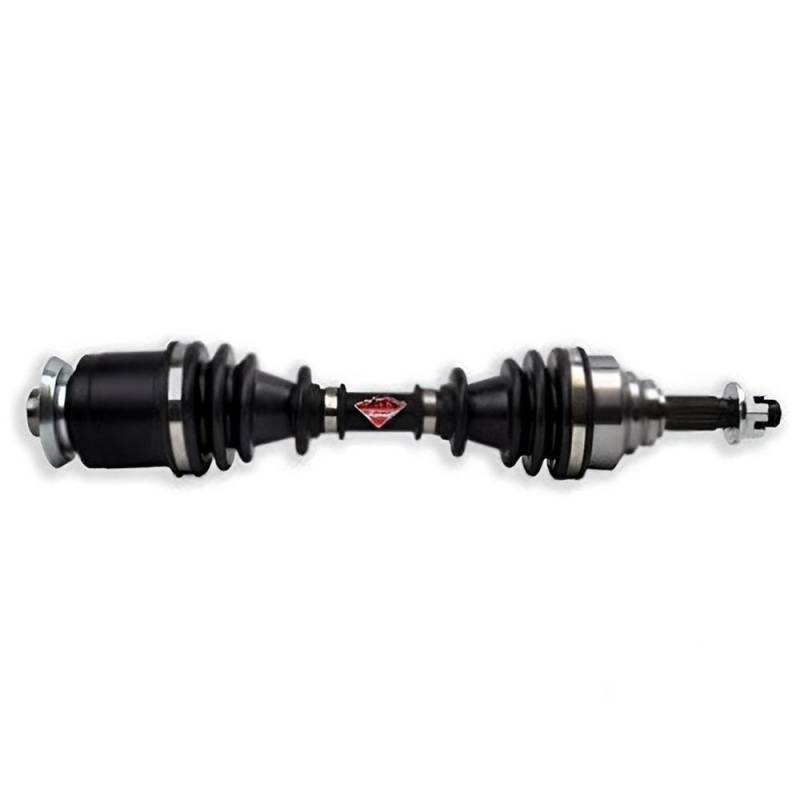

Cv Axle Shaft Assembly Front Right Passenger Side Compatible With Arctic Cat 400 Fis 500 Tbx Trv 650

OEM PART NUMBERS:
• Arctic Cat: 0502-542 / 0502542
• Arctic Cat: 1502-539 / 1502539
• Arctic Cat: 1502-533 / 1502533

SPECIFICATIONS:
• Type: Front CV Axle Drive Shaft Assembly
• Position: Front Right (Passenger Side)
• Compressed Length: 550mm (21 5/8")
• Inboard Splines: 21T
• Outboard Splines: 27T (2 9/16" Diameter)
• Shaft Diameter: 7/8"
• Thread: M18x1.5
• Includes: Complete Assembly with Inboard/Outboard CV Joints and Protective Neoprene Boots
• Condition: New

ARCTIC CAT ATV APPLICATIONS (2005):
• 400 4X4 FIS Auto/Manual 376cc Single-Cylinder SOHC (2005)
• 500 4X4 FIS Auto/Manual 493cc Single-Cylinder SOHC (2005)
• 500 4X4 TBX / TRV 493cc Single-Cylinder SOHC (2005)
• 650 H1 4X4 641cc Single-Cylinder SOHC (2005)
• 650 V2 4X4 FIS 633cc V-Twin SOHC (2005)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
