OEM PART NUMBERS:
• Arctic Cat: 0402-249 / 0402249
• Arctic Cat: 0402-779 / 0402779
• Arctic Cat: 1502-441 / 1502441
SPECIFICATIONS:

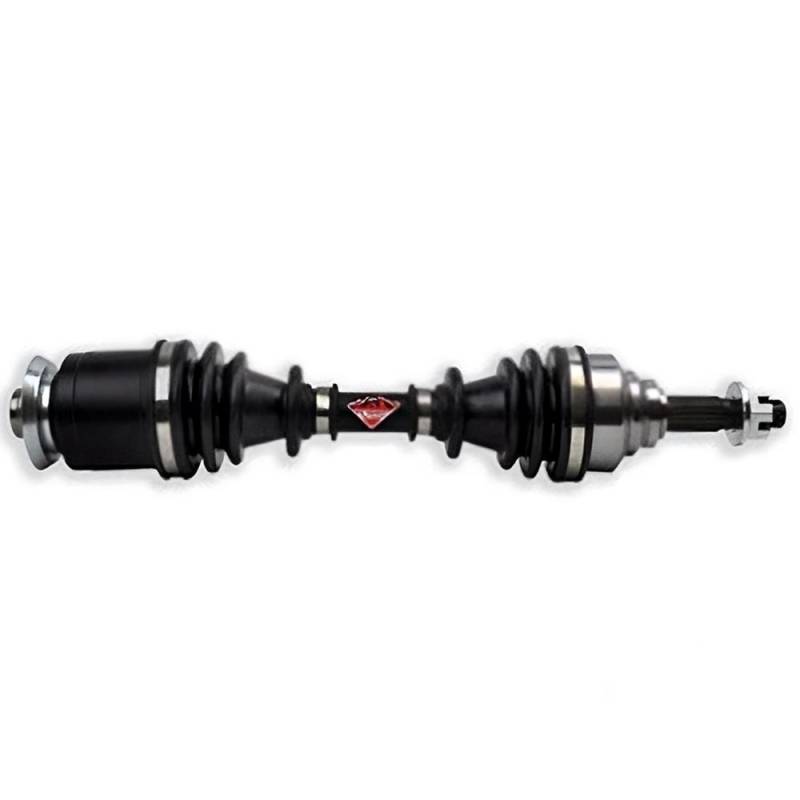

• Type: Front CV Axle Drive Shaft Assembly
• Position: Front Left (Driver Side)
• Compressed Length: 418mm (16 1/2")
• Inboard Splines: 20T (2 11/16" Diameter)
• Outboard Splines: 21T (2 3/4" Diameter)
• Shaft Diameter: 7/8"
• Thread: M18x1.5
• Includes: Complete Assembly with Inboard/Outboard CV Joints and Protective Neoprene Boots
• Condition: New
ARCTIC CAT ATV APPLICATIONS:
• 250 2X4/4X4 246cc Single-Cylinder (2001)
• 300 2X4/4X4 280cc Single-Cylinder (1998-2001)
• 400 4X4 FIS Auto/Manual / 2X4 Manual 376cc Single-Cylinder (2000-2003)
• 500 4X4 FIS Auto/Manual / LE 493cc Single-Cylinder (2000-2001)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
