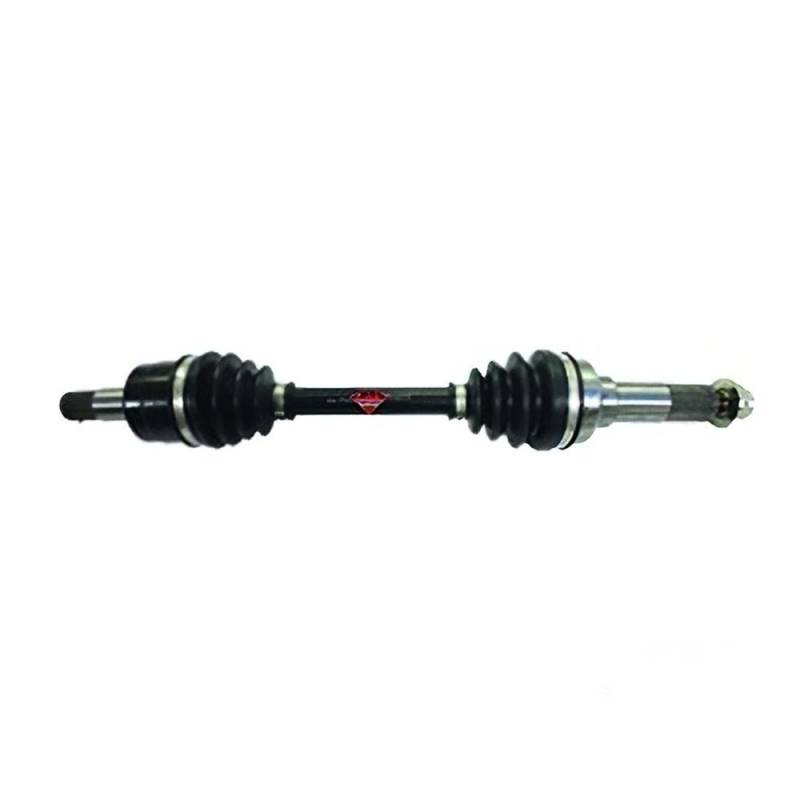

Front Left Cv Axle Shaft Assembly Compatible With Yamaha Big Bear 400 Big 386Cc 2007-2011

OEM PART NUMBERS:
• Yamaha: 4S1-2511E-00-00 / 4S12511E0000
• Yamaha: 4S1-2510J-01-00 / 4S12510J0100
• Yamaha: 4S1-2510F-00-00 / 4S12510F0000

SPECIFICATIONS:
• Axle Position: Front Left (Driver Side)
• Shaft Type: CV (Constant Velocity) Double Offset Joint
• Inboard Splines: 21 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 482 mm (18.98")
• Shaft Diameter: 3/4" (19mm)
• Thread Size: M20 x 1.5
• Material: 4140 Chromoly Steel
• Condition: New

YAMAHA ATV APPLICATIONS:
• Big Bear 400 4x4 IRS 386cc Air-Cooled SOHC 2-Valve Single-Cyl 4-Stroke (2007-2011)
• YFM400FB Big Bear 400 IRS 4WD

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
