OEM PART NUMBERS:
• Arctic Cat: 0502-547 / 0502547
SPECIFICATIONS:

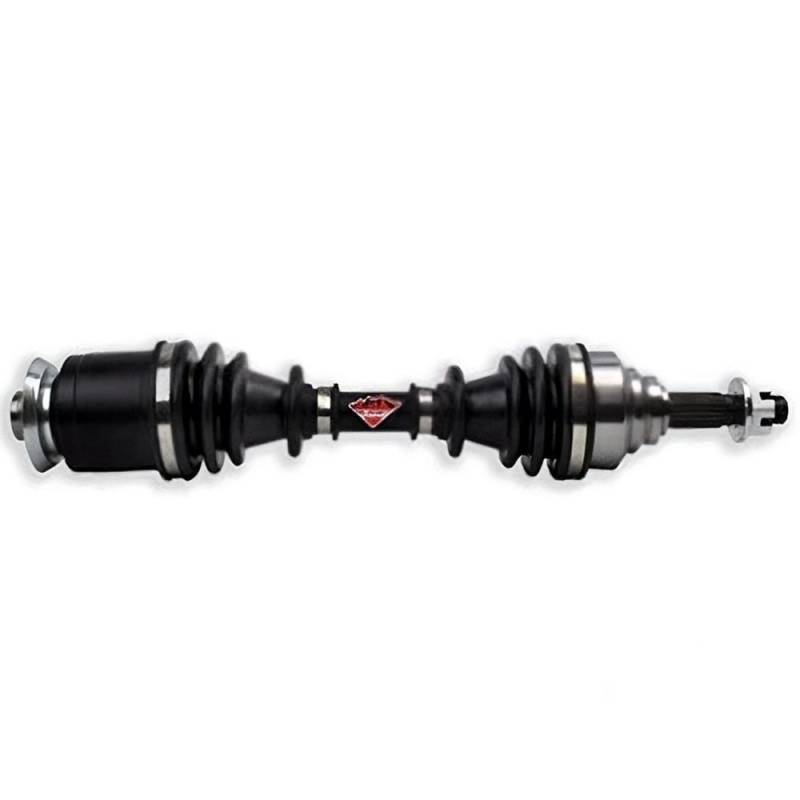

• Type: Front CV Axle / Constant Velocity Axle Shaft
• Position: Front Left (Driver Side)
• Inboard CV Joint Spline Count: 21
• Outboard CV Joint Spline Count: 27
• Compressed Overall Axle Length: 551.5mm (21 3/4")
• Shaft Diameter: 7/8"
• Thread Measurement: M18x1.5
• Drive Type: 4x4 (Selectable 2WD/4WD with Diff Lock)
• Condition: New
2005 ARCTIC CAT ATV APPLICATIONS:
• 650 H1 / 650 H1 Limited 641cc Single-Cylinder SOHC (2005)
• 650 V2 / 650 V2 Limited 633cc V-Twin SOHC (2005)
• 500 FIS Auto/Manual / 500 TBX / 500 Limited 493cc (2005)
• 400 FIS Auto/Manual / 400 Limited 376cc (2005)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
