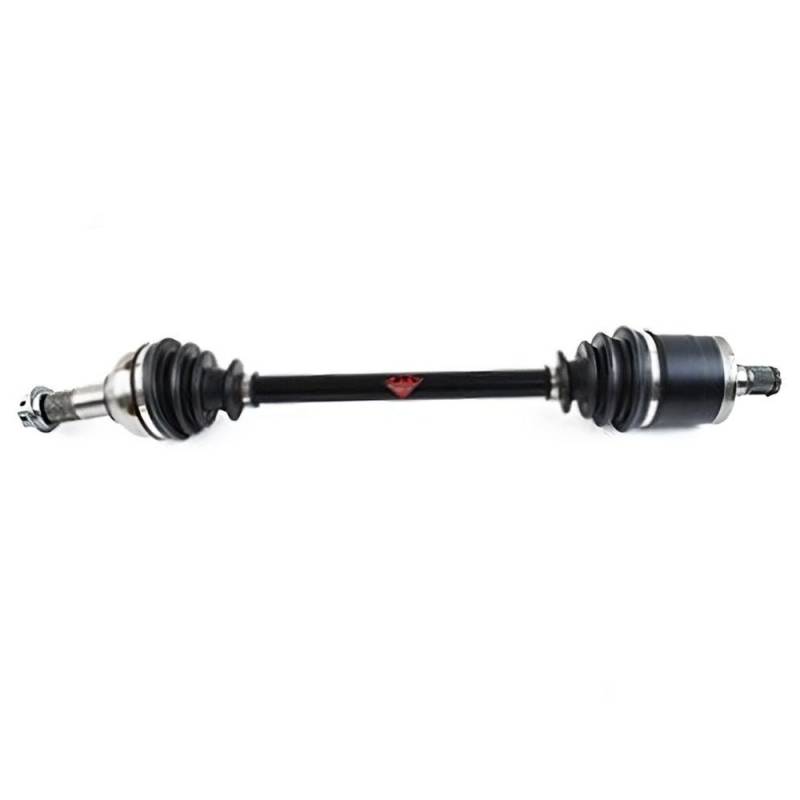

OEM Grade Rear Left / Rear Right Cv Axle Compatible With Can-Am Utv Commander 800R Dps/Xt Commander

OEM PART NUMBERS:
• Can-Am: 705502355
• Can-Am: 705502411

SPECIFICATIONS:
• Axle Position: Rear Left or Right (interchangeable)
• Shaft Type: CV (Constant Velocity)
• Inboard Splines: 24 Teeth
• Inboard Spline Diameter: 3-1/4 in
• Outboard Splines: 29 Teeth
• Outboard Spline Diameter: 3-1/8 in
• Shaft Diameter: 15/16 in
• Compressed Length: 26-13/16 in (680.5 mm)
• Condition: New

CAN-AM UTV APPLICATIONS:
• Commander 800R DPS/XT 4x4 799cc Liquid-Cooled SOHC V-Twin 4-Stroke (2016-2020)
• Commander 1000 XT 4x4 976cc Liquid-Cooled SOHC V-Twin 4-Stroke (2016-2017)
• Commander 1000R DPS/XT/XT-P 4x4 976cc Liquid-Cooled SOHC V-Twin 4-Stroke (2018-2020)
• Commander Max 800R DPS/XT 4x4 799cc Liquid-Cooled SOHC V-Twin 4-Stroke (2016-2020)
• Commander Max 1000 XT 4x4 976cc Liquid-Cooled SOHC V-Twin 4-Stroke (2016-2017)
• Commander Max 1000R DPS/XT 4x4 976cc Liquid-Cooled SOHC V-Twin 4-Stroke (2018-2020)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
