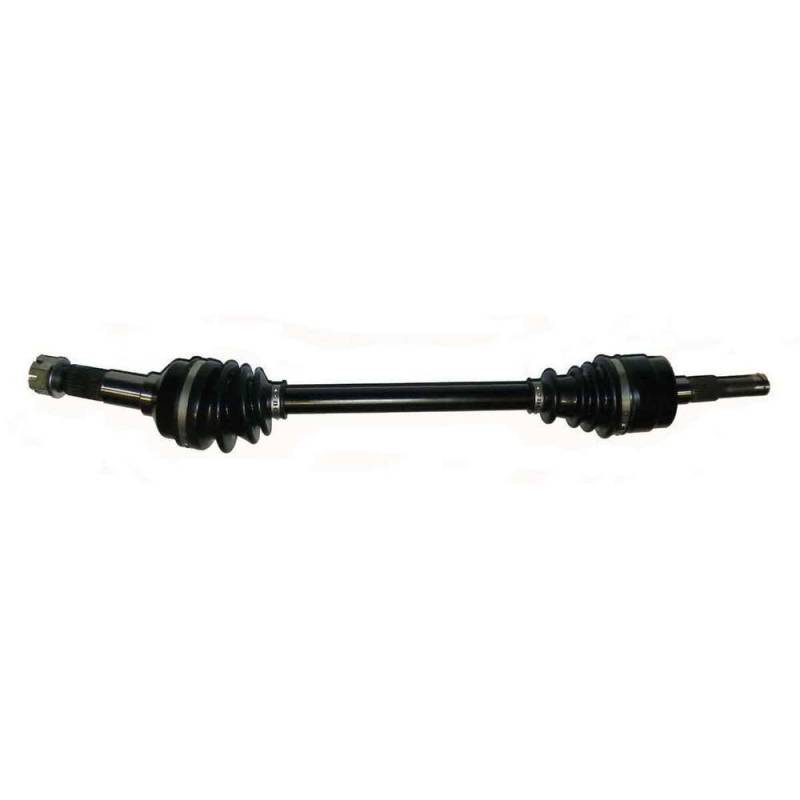

New 2004-2013 Compatible With Yamaha Rhino Rhino 450 Auto Front Right/Left (Interchangeable) Cv Axle

OEM PART NUMBERS:
• Yamaha: 5UG-F518G-00-00 / 5UGF518G0000
• Yamaha: 5UG-F518G-10-00 / 5UGF518G1000
• Yamaha: 5UG-F518G-20-00 / 5UGF518G2000

SPECIFICATIONS:
• Axle Position: Front Right or Left (Interchangeable)
• Shaft Type: CV (Constant Velocity) Double Offset Joint
• Inboard Splines: 21 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 651 mm (25.63")
• Shaft Diameter: 13/16" (21mm)
• Thread Size: M24 x 2.0
• Material: 4140 Chromoly Steel
• Condition: New

YAMAHA UTV APPLICATIONS:
• Rhino 450 Auto 4x4 421cc Liquid-Cooled SOHC 5-Valve Single-Cyl 4-Stroke (2006-2009)
• Rhino 660 Auto 4x4 660cc Liquid-Cooled SOHC 5-Valve Single-Cyl 4-Stroke (2004-2007)
• Rhino 700 FI Auto 4x4 686cc Liquid-Cooled SOHC 4-Valve Single-Cyl 4-Stroke (2008-2013)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
