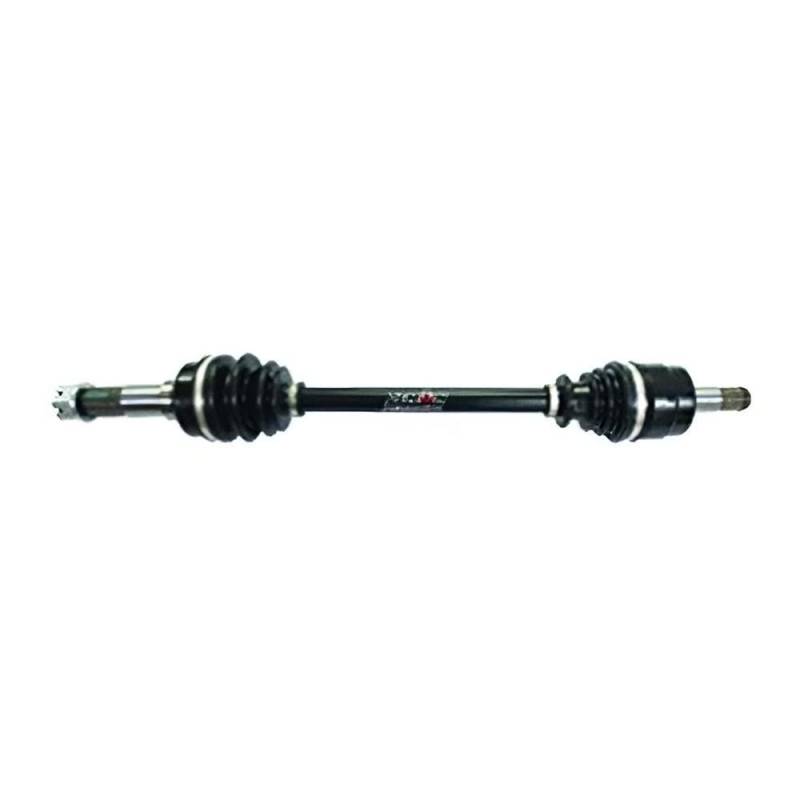

Heavy Duty Front Left/Right (Interchangeable) Cv Axle Shaft Assembly Compatible With Yamaha Rhino

OEM PART NUMBERS:
• Yamaha: 5B4-F518F-00-00 / 5B4F518F0000
• Yamaha: 5UG-F510F-20-00 / 5UGF510F2000
• Yamaha: 5UG-F518F-00-00 / 5UGF518F0000
• Yamaha: 5UG-F518F-10-00 / 5UGF518F1000

SPECIFICATIONS:
• Axle Position: Front Left or Right (Interchangeable) - Heavy Duty
• Shaft Type: CV (Constant Velocity) Heavy Duty Double Offset Joint
• Inboard Splines: 21 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 616 mm (24.25")
• Shaft Diameter: 13/16" (21mm)
• Thread Size: M24 x 2.0
• Material: 4340 Chromoly Steel (Heavy Duty)
• Condition: New

YAMAHA UTV APPLICATIONS:
• Rhino 450 Auto 4x4 421cc Liquid-Cooled SOHC 5-Valve Single-Cyl 4-Stroke (2006-2009)
• Rhino 660 Auto 4x4 660cc Liquid-Cooled SOHC 5-Valve Single-Cyl 4-Stroke (2004-2007)
• Rhino 700 FI Auto 4x4 686cc Liquid-Cooled SOHC 4-Valve Single-Cyl 4-Stroke (2008-2013)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
