OEM PART NUMBERS:
• Yamaha: 1XD-F531H-00-00 / 1XDF531H0000
• Yamaha: 1XD-F531H-01-00 / 1XDF531H0100

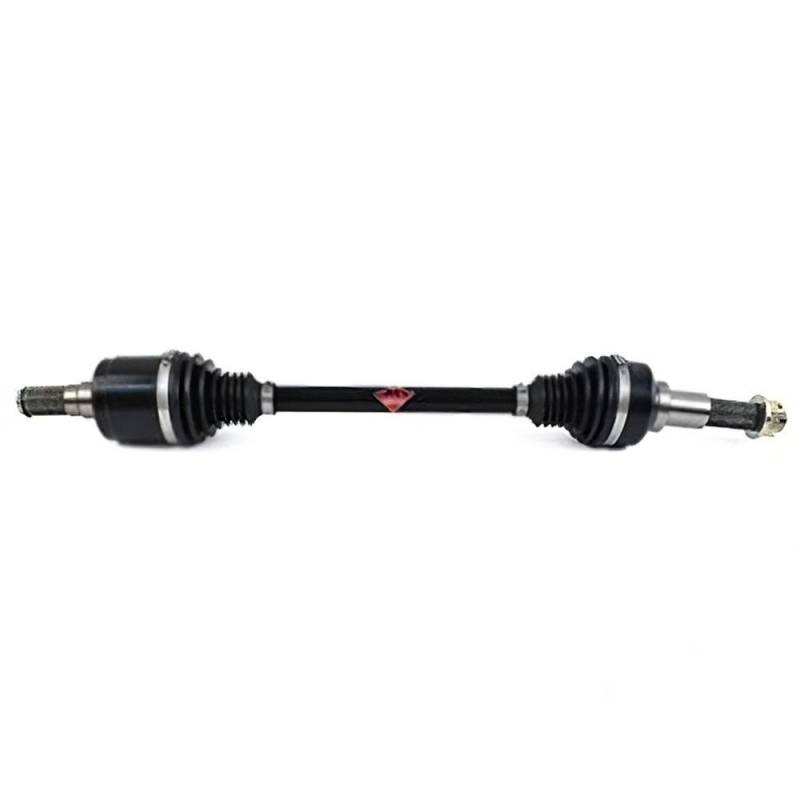

SPECIFICATIONS:
• Axle Position: Rear Right or Left (Interchangeable)
• Shaft Type: CV (Constant Velocity) Double Offset Joint
• Inboard Splines: 27 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 734 mm (28.9")
• Shaft Diameter: 13/16" (21mm)
• Thread Size: M24 x 1.5
• Material: 4140 Chromoly Steel
• Condition: New
YAMAHA UTV APPLICATIONS:
• Viking 700 EPS 686cc Liquid-Cooled SOHC 4-Valve Single-Cyl 4-Stroke (2014-2025)
• Viking VI 700 (2015-2025)
• Wolverine 700 (2016-2018)
• Wolverine R-Spec (2016-2018)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
