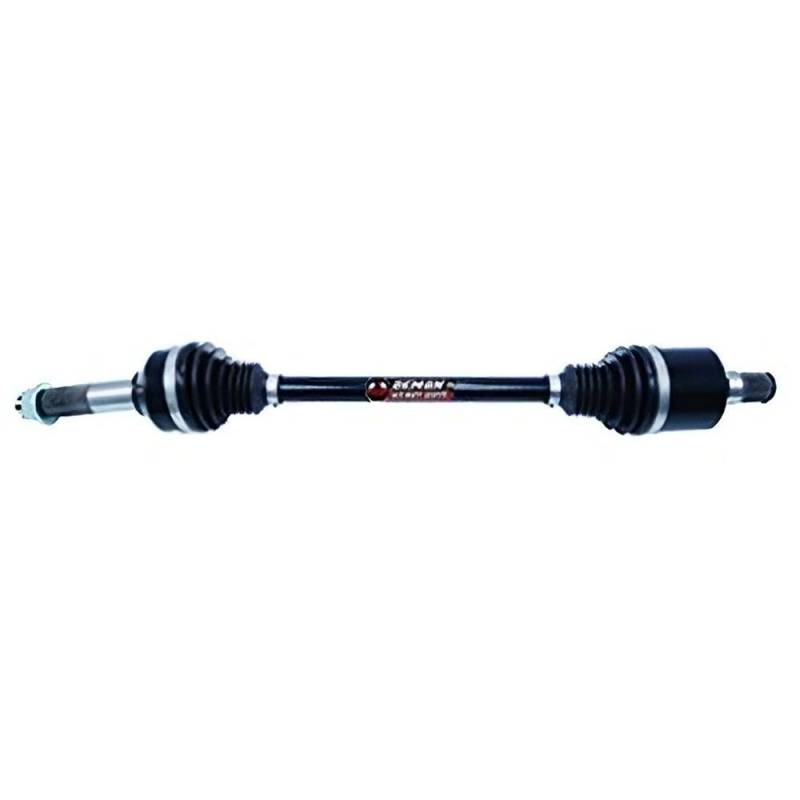

Heavy Duty Rear Left/Right (Interchangeable) Cv Axle Shaft Assembly Compatible With Polaris Rzr 800

PAXL-1138HDA1
OEM PART NUMBERS:
• Polaris: 1332672
• Polaris: 1332884
• Polaris: 1332444
• Polaris: 2203544
• Polaris: 2203546

SPECIFICATIONS:
• Axle Position: Rear Left or Right
• Shaft Type: CV (Constant Velocity) - Heavy Duty
• Inboard Splines: 27 Teeth
• Outboard Splines: 26 Teeth
• Compressed Length: 570 mm (22 7/16")
• Inboard Spline Diameter: 2 11/16"
• Outboard Spline Diameter: 3"
• Shaft Diameter: 13/16"
• Condition: New

POLARIS UTV APPLICATIONS:
• RZR 800 760cc Liquid-Cooled OHV Parallel-Twin 4-Stroke EFI 2008-2014

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $490.40
Sale: $280.23
Save: 43%
Save: $210.17
Qty:
Free Shipping!

Description

POLARIS RZR 800 4X4:
• RZR 800 760cc Liquid-Cooled OHV Parallel-Twin 4-Stroke EFI 2008-2014

CV AXLE SPECIFICATIONS:
• Axle Position: Rear Left or Right
• Shaft Type: CV (Constant Velocity) - Heavy Duty
• Inboard Splines: 27 Teeth
• Outboard Splines: 26 Teeth
• Compressed Length: 570 mm (22 7/16")
• Inboard Spline Diameter: 2 11/16"
• Outboard Spline Diameter: 3"
• Shaft Diameter: 13/16"
• Thread Size: M18x1.5
• Material: 4340 Chromoly Steel (HD)
• Condition: New

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W4.0000” x H4.0000” x L32.0000”
  • Free Shipping!
