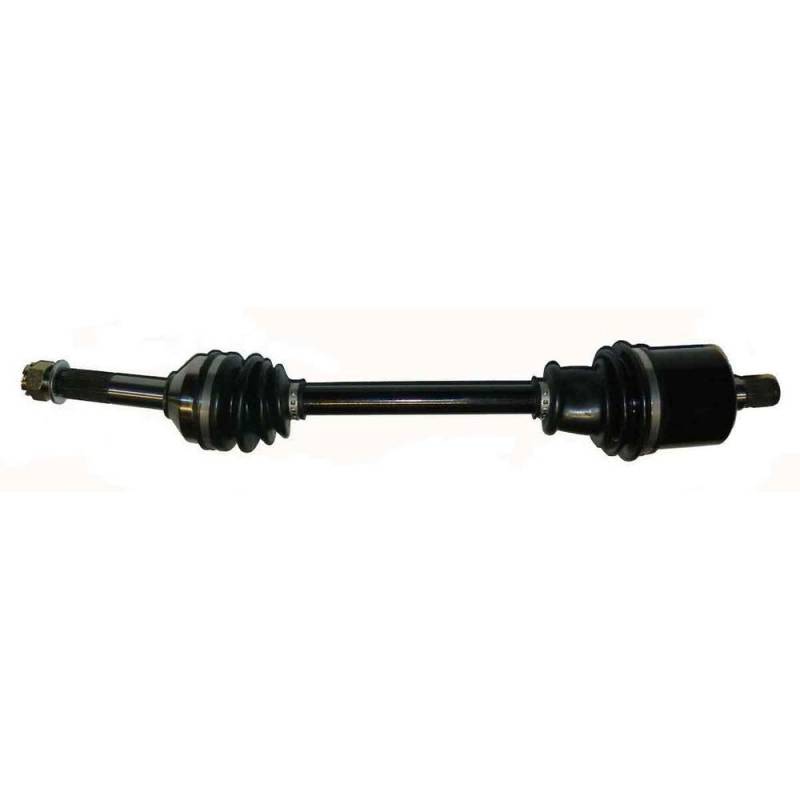

Heavy Duty Rear Right/Left Cv Axle Compatible With Kawasaki Utv Teryx 750 Fi Teryx Teryx4 749Cc

PAXL-1114HDA2
OEM PART NUMBERS:
• Kawasaki: 59266-0702 / 592660702

SPECIFICATIONS:
• Axle Position: Rear Right/Left (Universal)
• Shaft Type: CV (Constant Velocity) Heavy Duty
• Inboard Splines: 24 Teeth
• Outboard Splines: 24 Teeth
• Compressed Length: 651 mm (25 5/8")
• Inboard Spline Diameter: 3 1/4"
• Outboard Spline Diameter: 2 7/8"
• Shaft Diameter: 15/16" (HD Oversized)
• Condition: New

KAWASAKI UTV APPLICATIONS:
• Teryx 750 FI 4x4 (KRF750) 749cc Liquid-Cooled V-Twin SOHC )
• Teryx4 750 FI 4x4 (KRT750) 749cc Liquid-Cooled V-Twin SOHC )

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $490.40
Sale: $280.23
Save: 43%
Save: $210.17
Qty:
Free Shipping!

Description

KAWASAKI TERYX 750CC:
• Teryx 750 FI 4x4 (KRF750) 749cc Liquid-Cooled V-Twin SOHC (2008-2013)
• Teryx4 750 FI 4x4 (KRT750) 749cc Liquid-Cooled V-Twin SOHC (2012-2013)

CV AXLE SPECIFICATIONS:
• Axle Position: Rear Right/Left (Universal)
• Shaft Type: CV (Constant Velocity) Heavy Duty
• Inboard Splines: 24 Teeth
• Outboard Splines: 24 Teeth
• Compressed Length: 651 mm (25 5/8")
• Inboard Spline Diameter: 3 1/4"
• Outboard Spline Diameter: 2 7/8"
• Shaft Diameter: 15/16" (HD Oversized)
• Thread Size: M20x1.5
• Material: 4340 Chromoly Steel (Heavy Duty)
• Condition: New

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W4.0000” x H4.0000” x L32.0000”
  • Free Shipping!
