Piston Kit With Gaskets 87Mm +0.50Mm Over Compatible With 2009-2024 Honda Trx420 Rancher 420

OEM PART NUMBERS:
• Honda: 13103-HP5-600 / 13103HP5600 - Piston (+0.50mm Over)
• Honda: 12100-HP7-A00 / 12100HP7A00 - Cylinder (2009-2024)
• Honda: 12191-HP5-601 / 12191HP5601 - Cylinder Base Gasket
• Honda: 12251-HP7-A01 / 12251HP7A01 - Cylinder Head Gasket (2009-2024)
• Honda: 12315-HP5-601 / 12315HP5601 - Head Cover Gasket
• Honda: 13111-HP5-600 / 13111HP5600 - Wrist Pin
• Honda: 13112-MAT-000 / 13112MAT000 - Circlips

SPECIFICATIONS:
• Product Type: Top End Piston Kit
• Bore Size: 87.00mm
• Oversize: +0.50mm Over
• Bore x Stroke: 86.5mm x 71.5mm
• Displacement: 420cc
• Engine Type: Liquid-Cooled OHV Single-Cyl 4-Stroke
• Compression Ratio: 9.9:1

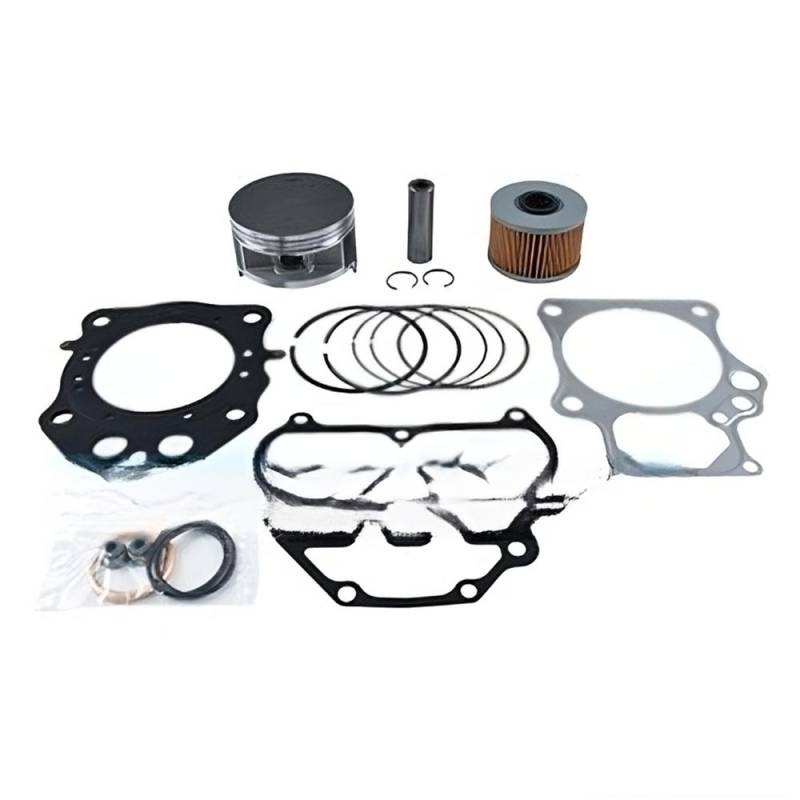

• Kit Includes: Piston, Rings, Wrist Pin, Circlips, Valve Seals, Top End Gasket Set, Oil Filter
• Condition: New

APPLICATIONS:
• TRX420FA Rancher 420 AT 4x4 (2009-2014)
• TRX420FE Rancher 420 4x4 ES (2009-2024)
• TRX420FM Rancher 420 4x4 (2009-2024)
• TRX420FPA Rancher 420 AT 4x4 PS (2009-2014)
• TRX420FPE Rancher 420 4x4 PS ES (2009-2024)
• TRX420FPM Rancher 420 4x4 PS (2009-2024)
• TRX420TE Rancher 420 2x4 ES (2009-2024)
• TRX420TM Rancher 420 2x4 (2009-2024)
