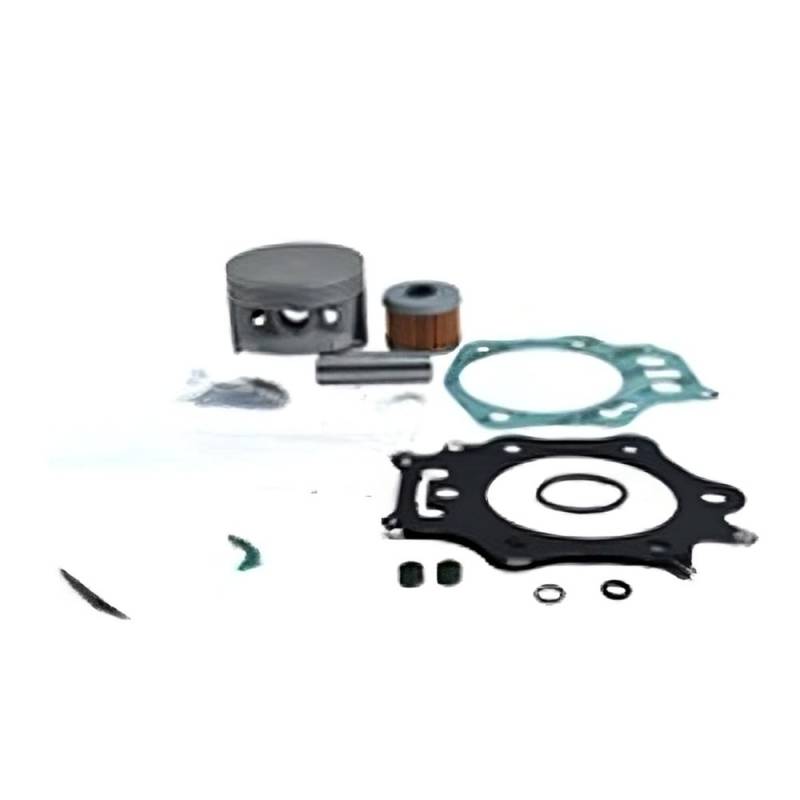

Top End Piston Kit 91Mm Bore +1.00Mm Over Compatible With 1998-2004 Honda Trx450 Foreman 450

OEM PART NUMBERS:
• Honda: 13105-HN0-A00 / 13105HN0A00 - Piston (+1.00mm Over)
• Honda: 12100-HN0-A00 / 12100HN0A00 - Cylinder
• Honda: 12191-HM7-013 / 12191HM7013 - Cylinder Base Gasket
• Honda: 12251-HN0-A01 / 12251HN0A01 - Cylinder Head Gasket
• Honda: 12315-HM7-005 / 12315HM7005 - Head Cover Gasket
• Honda: 13111-HN0-A00 / 13111HN0A00 - Wrist Pin
• Honda: 13112-MAT-000 / 13112MAT000 - Circlips
• Honda: 12209-KL4-005 / 12209KL4005 - Valve Seals
• Honda: 91305-HN0-A00 / 91305HN0A00 - O-Ring

SPECIFICATIONS:
• Product Type: Top End Piston Kit
• Bore Size: 91.00mm
• Oversize: +1.00mm Over
• Bore x Stroke: 90mm x 68mm
• Displacement: 433cc
• Engine Type: Air-Cooled OHV Single-Cyl 4-Stroke
• Kit Includes: Piston, Rings, Wrist Pin, Circlips, Valve Seals, Top End Gasket Set, Oil Filter
• Condition: New

APPLICATIONS:
• TRX450S Foreman 450 S 4x4 (1998-2001)
• TRX450ES Foreman 450 ES 4x4 (1998-2001)
• TRX450FE Foreman 450 ES 4x4 (2002-2004)
• TRX450FM Foreman 450 S 4x4 (2002-2004)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
