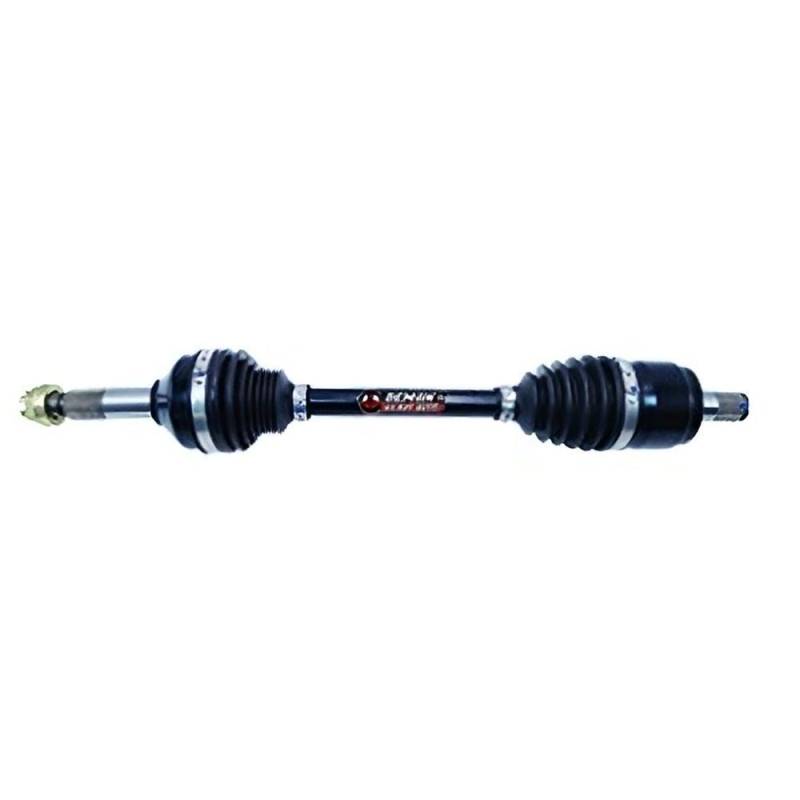

Heavy Duty Front Left/Right (Interchangeable) Cv Axle Compatible With Yamaha Atv Grizzly 550 Fi Auto

OEM PART NUMBERS:
• Yamaha: 28P-2510F-04-00 / 28P2510F0400
• Yamaha: 28P-2510F-05-00 / 28P2510F0500
• Yamaha: 28P-2510J-00-00 / 28P2510J0000
• Yamaha: 28P-2510J-01-00 / 28P2510J0100
• Yamaha: 28P-2518E-00-00 / 28P2518E0000
• Yamaha: 3B4-2510J-00-00 / 3B42510J0000

SPECIFICATIONS:
• Axle Position: Front Left or Right (Interchangeable) - Heavy Duty
• Shaft Type: CV (Constant Velocity) Heavy Duty Double Offset Joint
• Inboard Splines: 21 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 507 mm (19.94")
• Shaft Diameter: 3/4" (19mm)
• Thread Size: M20 x 1.5
• Material: 4340 Chromoly Steel (Heavy Duty)
• Condition: New

YAMAHA ATV APPLICATIONS:
• Grizzly 550 FI Auto 4x4 558cc Liquid-Cooled SOHC 4-Valve Single-Cyl 4-Stroke (2009-2014)
• Grizzly 700 FI Auto 4x4 686cc Liquid-Cooled SOHC 4-Valve Single-Cyl 4-Stroke (2007-2018)
• Kodiak 700 (2016-2020)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
