Piston Kit With Gaskets 103Mm +1.00Mm Over Compatible With 2006-2025 Honda Trx680 Rincon 680 Pioneer

OEM PART NUMBERS:
• Honda: 13105-HN8-A60 / 13105HN8A60 - Piston (+1.00mm Over)
• Honda: 12100-HN8-A60 / 12100HN8A60 - Cylinder
• Honda: 12191-HN8-000 / 12191HN8000 - Cylinder Base Gasket
• Honda: 12251-HN8-A61 / 12251HN8A61 - Cylinder Head Gasket
• Honda: 12315-HN8-000 / 12315HN8000 - Head Cover Gasket
• Honda: 13111-HN8-A60 / 13111HN8A60 - Wrist Pin
• Honda: 90602-MBN-670 / 90602MBN670 - Circlips
• Honda: 12194-HC5-740 / 12194HC5740 - Chain Tensioner Gasket

SPECIFICATIONS:
• Product Type: Top End Piston Kit
• Bore Size: 103.00mm
• Oversize: +1.00mm Over
• Bore x Stroke: 102mm x 82.6mm
• Displacement: 675cc
• Engine Type: Liquid-Cooled OHC Single-Cyl 4-Stroke
• Compression Ratio: 9.2:1

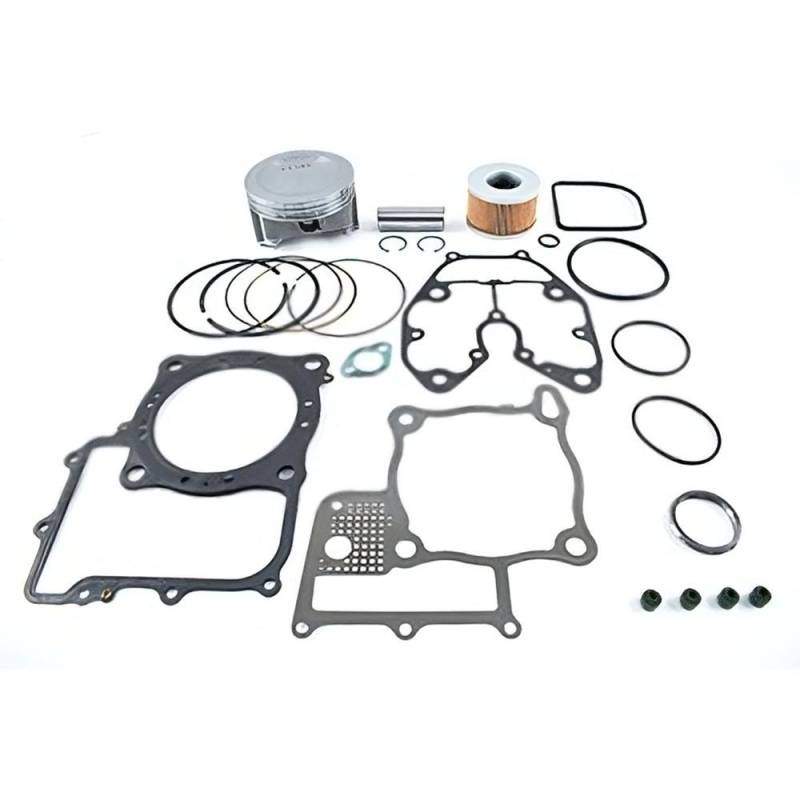

• Kit Includes: Piston, Rings, Wrist Pin, Circlips, Valve Seals, Top End Gasket Set, Oil Filter
• Condition: New

APPLICATIONS:
• TRX680FA Fourtrax Rincon 680 4x4 (2006-2024)
• TRX680FGA Fourtrax Rincon 680 GPScape (2006-2009)
• MUV700 Big Red 700 (2009-2013)
• SXS700M2 Pioneer 700 (2014-2025)
• SXS700M4 Pioneer 700-4 (2014-2025)
• SXS700M2D Pioneer 700 Deluxe (2017-2025)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
