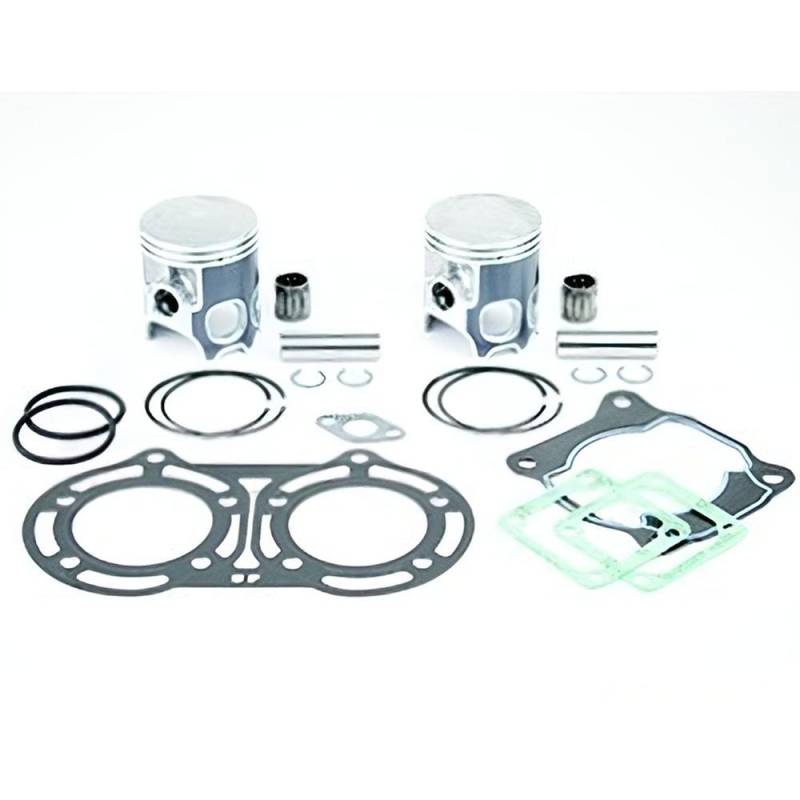

Platinum Piston Gasket Rebuild Kit 64.5Mm +0.5Mm Over Compatible With 1987-2006 Yamaha Yfz350

OEM PART NUMBERS:
• Piston: 2GU-11631-00-94 / 2GU1163100094
• Piston Assembly: 2GU-11610-01-00 / 2GU1161001000
• Piston Assembly 1st Over: 2GU-11610-11-00 / 2GU1161011000
• Piston Assembly 2nd Over: 2GU-11610-21-00 / 2GU1161021000
• Oversize Piston: 2GU-11636-00-00 / 2GU1163600000
• Piston Pin: 4L0-11633-00-00 / 4L01163300000
• Circlips: 93450-17129-00 / 934501712900
• Wrist Pin Bearing: 93310-316D6-00 / 93310316D600
• Cylinder Head Gasket: 2GU-11181-00-00 / 2GU1118100000
• Cylinder Base Gasket: 3GG-11351-02-00 / 3GG1135102000
• Base Gasket Superseded: 3GG-11351-00-00 / 3GG-11351-01-00
• Reed Valve Gasket: 3GG-13621-00-00 / 3GG1362100000
• Reed Valve Gasket Alt: 31K-13621-00-00 / 55K-13621-01-00

SPECIFICATIONS:
• Type: Top End Rebuild Kit (Platinum)
• Bore Size: 64.5mm (+0.5mm Over)
• Oversize: +0.5mm Over
• Standard Bore: 64mm
• Stroke: 54mm
• Displacement: 347cc
• Compression Ratio: 6.5:1
• Engine Type: Liquid-Cooled Twin-Cylinder 2-Stroke
• Cylinders: 2 (kit serves both cylinders)
• Piston Type: Platinum
• Condition: New

YAMAHA BANSHEE 350 APPLICATIONS:
• Yamaha YFZ350 Banshee 350 347cc 2-Stroke 34HP (1987-2006)
• Yamaha YFZ350LE Banshee 350 Limited Edition (2004)
• Yamaha YFZ350SE Banshee 350 Special Edition (2005-2006)
• Yamaha YFZ350SP Banshee 350 50th Anniversary Edition (2006)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
