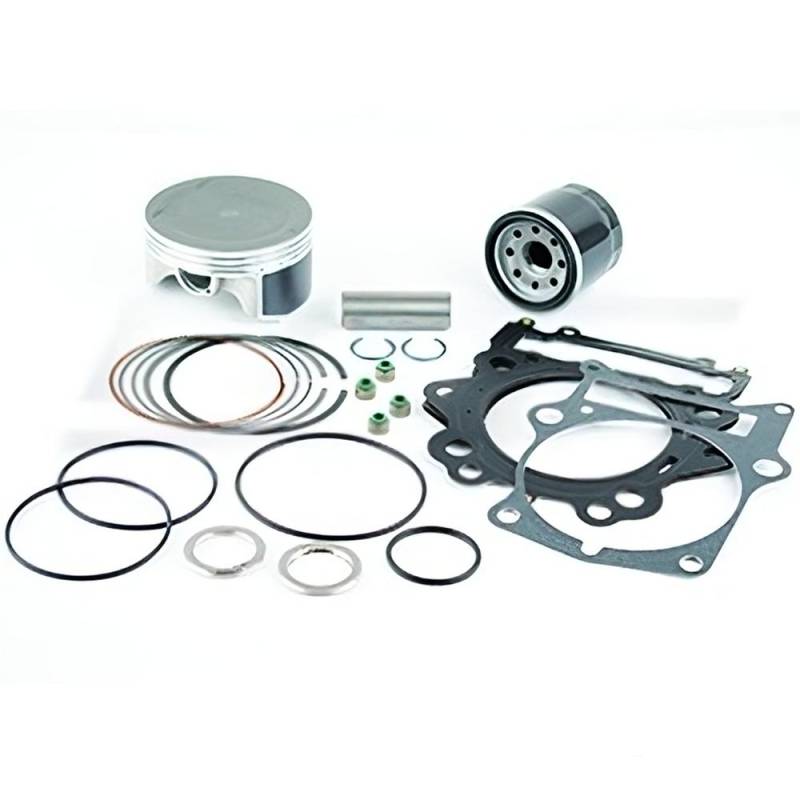

Piston Gasket Rebuild Kit 102.75Mm +0.75Mm Over Compatible With 2007-2014 Yamaha Yfm700 Grizzly 700

OEM PART NUMBERS:
• Piston Std: 1S3-11631-10-00 / 1S31163110000
• Piston Std Superseded: 2BG-11631-00-00 / 2BG1163100000
• Piston Ring Set: 1S3-11603-10-00 / 1S31160310000
• Piston Pin: 5VK-11633-00-00 / 5VK1163300000
• Circlips: 93450-24154-00 / 934502415400
• Cylinder: 1S3-11310-01-00 / 1S31131001000
• Cylinder Head Gasket: 3B4-11181-00-00 / 3B41118100000
• Cylinder Base Gasket: 1S3-11351-00-00 / 1S31135100000
• Chain Tensioner Gasket: 4DW-12213-00-00 / 4DW1221300000

SPECIFICATIONS:
• Type: Top End Rebuild Kit
• Bore Size: 102.75mm (+0.75mm Over)
• Oversize: +0.75mm Over
• Standard Bore: 102mm
• Stroke: 84mm
• Displacement: 686cc
• Compression Ratio: 9.2:1
• Engine Type: 686cc SOHC Liquid-Cooled Single-Cyl 4-Stroke EFI
• Condition: New

APPLICATIONS:
• Yamaha YFM700FG Grizzly 700 4x4 EFI (2007-2014)
• Yamaha Grizzly 700 EPS / Hunter Edition (2007-2014)
• Yamaha YXR700F Rhino 700 FI (2008-2013)
• Yamaha Rhino 700 SE / Sport Edition (2008-2013)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
