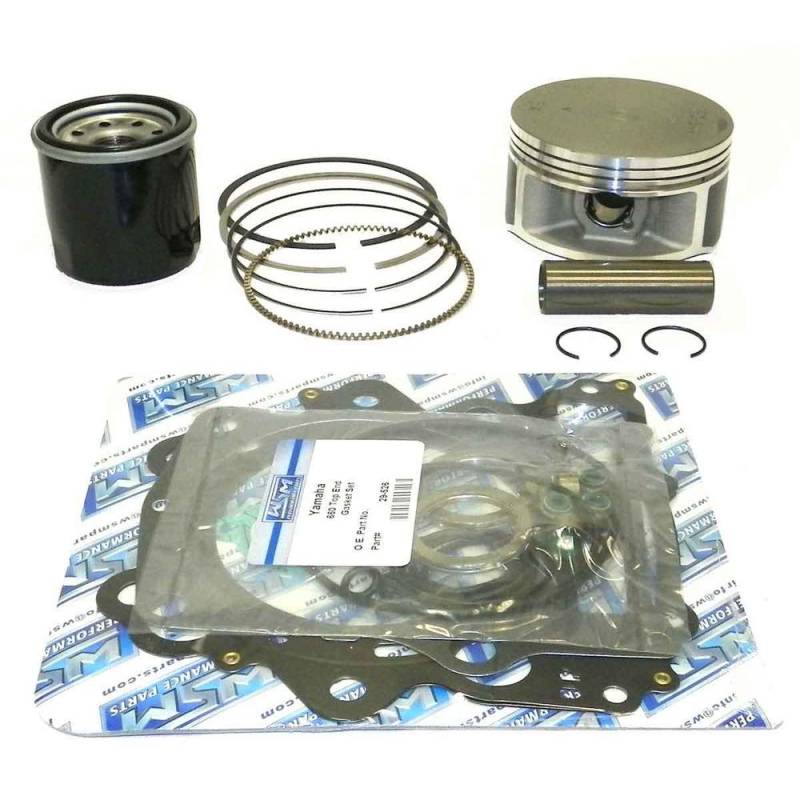

Piston Top End Kit 100.75Mm +0.75Mm Over Compatible With 2002-2008 Yamaha Grizzly 660 Hunter Edition

OEM PART NUMBERS:
• Piston Std: 3YF-11631-00-X0 / 3YF1163100X0
• Piston Std Superseded: 2C6-11631-00-X0 / 2C61163100X0
• Piston 0.50mm Over: 3YF-11636-00-00 / 2C6-11636-00-00
• Piston 1.00mm Over: 3YF-11638-00-00 / 2C6-11638-00-00
• Piston Ring Set: 3YF-11610-00-00 / 2C6-11603-00-00
• Piston Pin: 3YF-11633-01-00 / 3YF1163301000
• Circlips: 93450-24028-00 / 934502402800
• Cylinder: 5KM-11310-00-00 / 3YF-11310-00-00
• Cylinder Head Gasket: 3YF-11181-00-00 / 3YF1118100000
• Cylinder Base Gasket: 3YF-11351-00-00 / 5KM-11351-00-00

SPECIFICATIONS:
• Type: Top End Rebuild Kit
• Bore Size: 100.75mm (+0.75mm Over)
• Oversize: +0.75mm Over
• Standard Bore: 100mm
• Stroke: 84mm
• Displacement: 660cc
• Compression Ratio: 9.1:1
• Engine Type: 660cc SOHC Liquid-Cooled Single-Cyl 4-Stroke
• Condition: New

APPLICATIONS:
• Yamaha YFM660R Raptor 660R (2001-2005)
• Yamaha Raptor 660R LE / SE (2003-2005)
• Yamaha YFM660F Grizzly 660 4x4 (2002-2008)
• Yamaha YXR660F Rhino 660 (2004-2007)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
