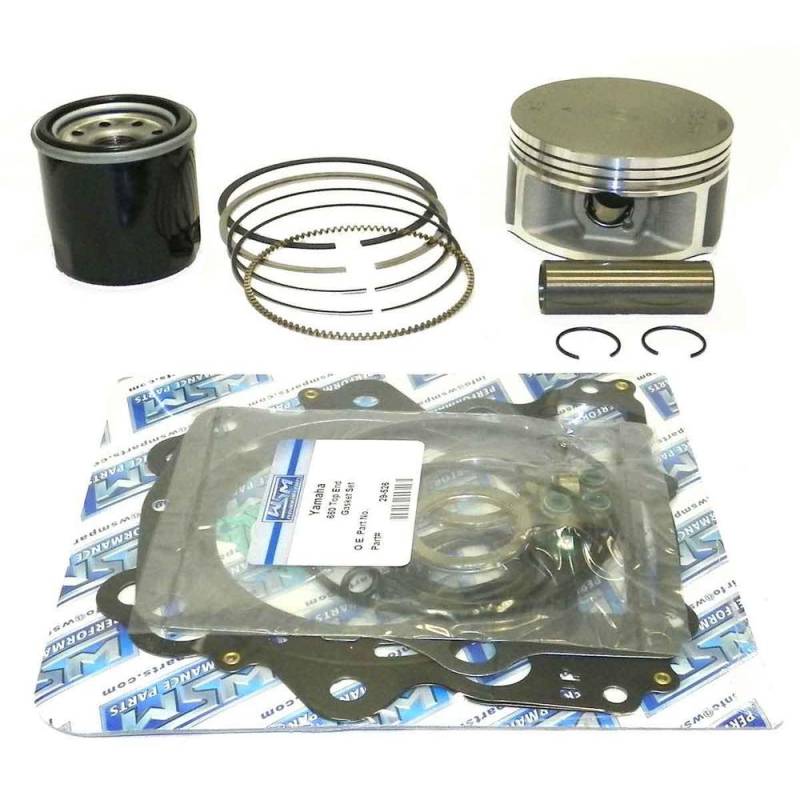

Piston Gasket Rebuild Kit 100.75Mm +0.75Mm Over Compatible With 2004-2007 Yamaha Rhino 660 Yxr660f

OEM PART NUMBERS:
• Piston Std: 3YF-11631-00-X0 / 3YF1163100X0
• Piston Std Superseded: 2C6-11631-00-X0 / 2C61163100X0
• Piston 0.50mm Over: 3YF-11636-00-00 / 2C6-11636-00-00
• Piston 1.00mm Over: 3YF-11638-00-00 / 2C6-11638-00-00
• Piston Ring Set: 3YF-11610-00-00 / 2C6-11603-00-00
• Piston Pin: 3YF-11633-01-00 / 3YF1163301000
• Circlips: 93450-24028-00 / 934502402800
• Cylinder: 5KM-11310-00-00 / 3YF-11310-00-00
• Cylinder Head Gasket: 3YF-11181-00-00 / 3YF1118100000
• Cylinder Base Gasket: 3YF-11351-00-00 / 5KM-11351-00-00

SPECIFICATIONS:
• Type: Top End Rebuild Kit
• Bore Size: 100.75mm (+0.75mm Over)
• Oversize: +0.75mm Over
• Standard Bore: 100mm
• Stroke: 84mm
• Displacement: 660cc
• Compression Ratio: 9.1:1
• Engine Type: 660cc SOHC Liquid-Cooled Single-Cyl 4-Stroke
• Condition: New

APPLICATIONS:
• Yamaha YFM660R Raptor 660R (2001-2005)
• Yamaha Raptor 660R LE / SE (2003-2005)
• Yamaha YFM660F Grizzly 660 4x4 (2002-2008)
• Yamaha YXR660F Rhino 660 (2004-2007)

PRODUCT NOTICE:
