Top End Piston Kit 85Mm Bore Compatible With 1996-2014 Honda Trx400ex / Trx400x / Xr400r Replaces

OEM PART NUMBERS:
• Honda: 13101-KCY-670 / 13101KCY670 - Piston (Standard)
• Honda: 13011-KCY-670 / 13011KCY670 - Piston Ring Set (Standard)
• Honda: 12100-KCY-670 / 12100KCY670 - Cylinder
• Honda: 12191-KCY-672 / 12191KCY672 - Cylinder Base Gasket
• Honda: 12251-HN1-003 / 12251HN1003 - Cylinder Head Gasket
• Honda: 13111-KCY-670 / 13111KCY670 - Wrist Pin
• Honda: 90601-KA5-000 / 90601KA5000 - Circlips
• Honda: 12391-KCY-671 / 12391KCY671 - Head Cover Gasket

SPECIFICATIONS:
• Product Type: Top End Piston Kit
• Bore Size: 85.00mm
• Oversize: Standard
• Bore x Stroke: 85mm x 70mm
• Displacement: 397cc
• Engine Type: Air-Cooled SOHC Single-Cyl 4-Stroke
• Compression Ratio: 10:1

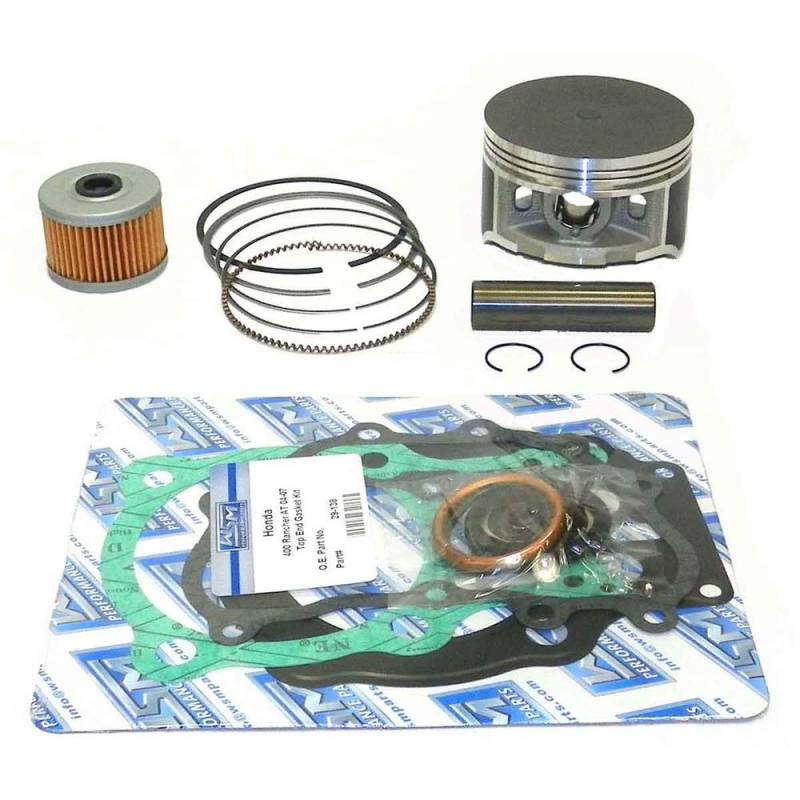

• Kit Includes: Piston, Rings, Wrist Pin, Circlips, Valve Seals, Top End Gasket Set, Oil Filter
• Condition: New

APPLICATIONS:
• TRX400EX Sportrax 400 2x4 (1999-2008)
• TRX400X (2009, 2012-2014)
• XR400R (1996-2004)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
