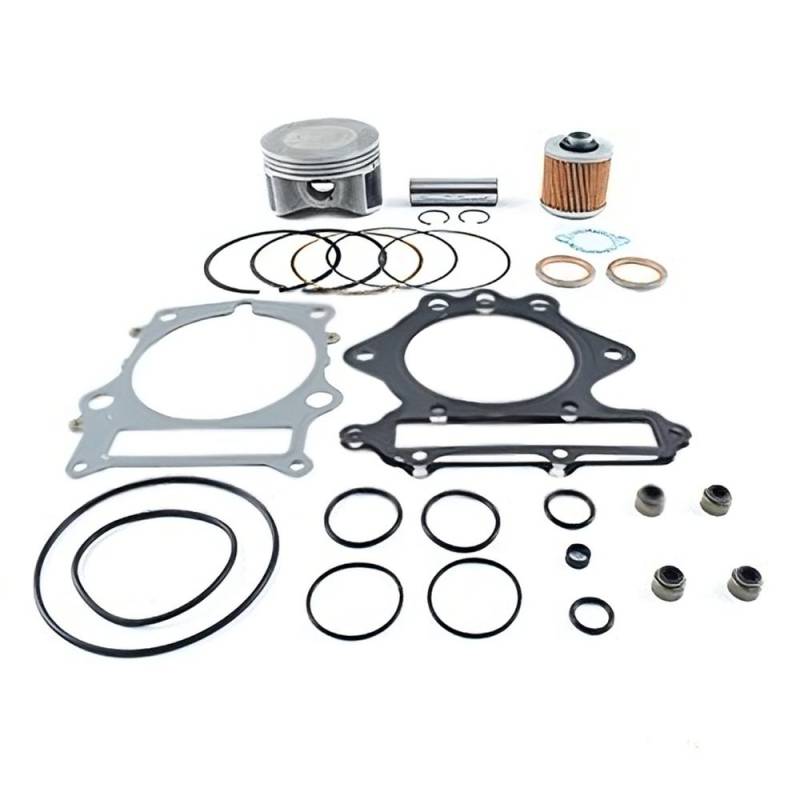

Piston Gasket Rebuild Kit 95.25Mm +0.25Mm Over Compatible With 1998-2001 Yamaha Yfm600fw Grizzly 600

OEM PART NUMBERS:
• Piston Std: 3TB-11631-00-Y0 / 3TB1163100Y0
• Piston Std Alt: 34K-11631-02-Y0 / 34L-11631-02-Y0
• Piston Ring Set: 34L-11610-00 / 34L1161000
• Piston Pin: 1JK-11633-01 / 1JK1163301
• Circlips: 93450-24028 / 9345024028
• Cylinder: 3TB-11310-00 / 3TB1131000
• Cylinder Head Gasket: 2KF-11181-01 / 2KF1118101
• Cylinder Base Gasket: 1VJ-11351-00 / 1VJ1135100
• Chain Tensioner Gasket: 4DW-12213-00 / 4DW1221300

SPECIFICATIONS:
• Type: Top End Rebuild Kit
• Bore Size: 95.25mm (+0.25mm Over)
• Oversize: +0.25mm Over
• Standard Bore: 95mm
• Stroke: 84mm
• Displacement: 595cc
• Compression Ratio: 8.5:1
• Engine Type: 595cc SOHC Air-Cooled Single-Cyl 4-Stroke
• Condition: New

APPLICATIONS:
• Yamaha YFM600FW Grizzly 600 4x4 (1998-2001)
• Yamaha Grizzly 600 Hunting Edition (2000)
• Yamaha Grizzly 600 Hunter Edition (2001)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
