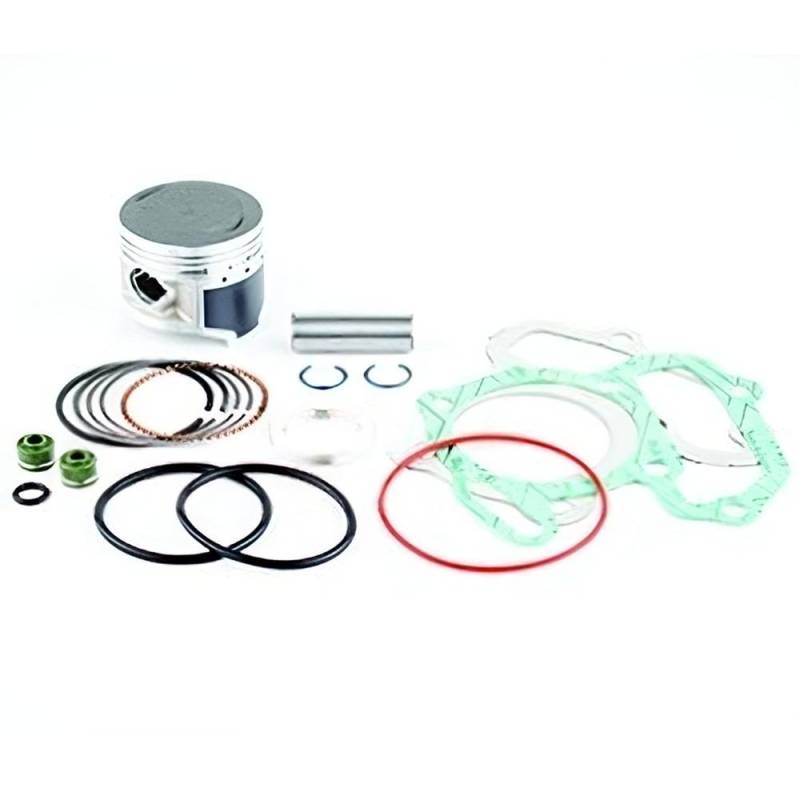

Piston Gasket Rebuild Kit 47.75Mm +0.75Mm Over Compatible With 1985-2008 Yamaha Yfm80 Badger Raptor

OEM PART NUMBERS:
• Piston: 55X-11631-00-96 / 55X1163100096
• Piston 1st Over: 55X-11636-00-00 / 55X1163600000
• Piston 2nd Over: 55X-11638-00-00 / 55X1163800000
• Piston Ring Set: 55X-11610-00-00 / 55X1161000000
• Piston Ring Set 2nd Over: 55X-11610-20-00 / 55X1161020000
• Cylinder Head Gasket: 55X-11181-00-00 / 55X1118100000
• Cylinder Base Gasket: 22F-11351-01-00 / 22F1135101000
• Cylinder: 22K-11311-02-00 / 22K1131102000
• Circlips: 93450-14088-00 / 934501408800

SPECIFICATIONS:
• Type: Top End Rebuild Kit
• Bore Size: 47.75mm (+0.75mm Over)
• Oversize: +0.75mm Over
• Standard Bore: 47mm
• Stroke: 45.6mm
• Displacement: 80cc
• Engine Type: 80cc Air-Cooled Single-Cyl 4-Stroke SOHC
• Condition: New

APPLICATIONS:
• Yamaha YFM80 Badger 80 (1985-1988, 1992-2001)
• Yamaha YFM80 Moto 4 80 (1986-1987)
• Yamaha YFM80W/YFM80R Raptor 80 (2002-2008)
• Yamaha YFM80G Grizzly 80 (2005-2008)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
