OEM PART NUMBERS:
• Piston: 12111-31H10-0F0 / 12111-31H00-0F0
• Piston Ring Set: 12140-03G20 / 1214003G20
• Piston Pin: 12151-24A00 / 1215124A00
• Circlips: 09381-20004 / 0938120004
• Cylinder: 11211-31H00-0F0 / 1121131H000F0
• Complete Gasket Kit: 11400-11830 / 1140011830
SPECIFICATIONS:

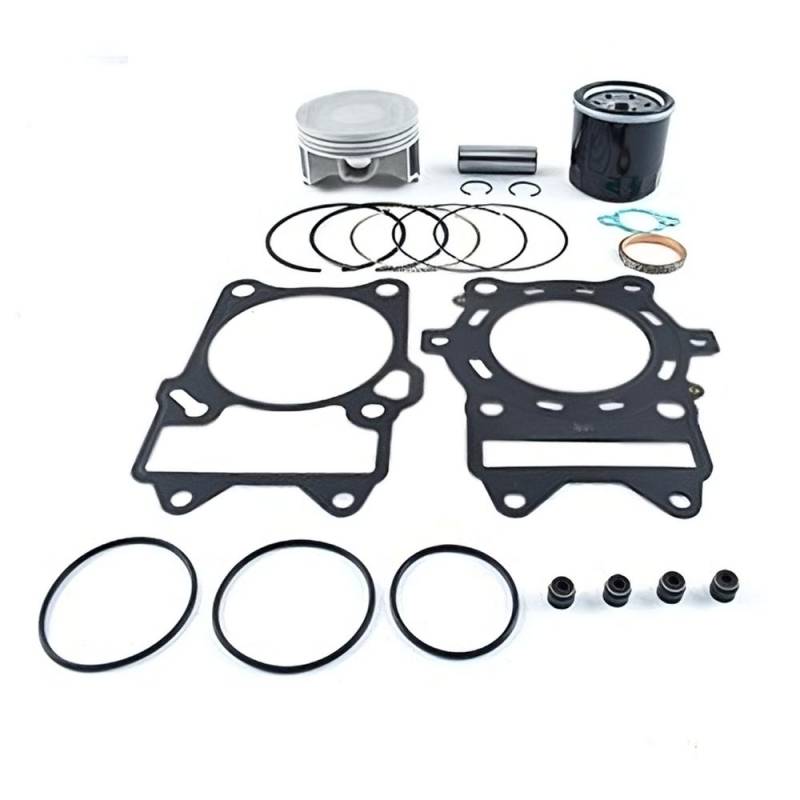

• Type: Top End Rebuild Kit
• Bore Size: 87.95mm (+0.5mm Over)
• Standard Bore: 87.5mm
• Stroke: 82mm
• Displacement: 493cc
• Engine Type: 493cc SOHC Liquid-Cooled Single-Cyl 4-Stroke EFI
• Condition: New
APPLICATIONS:
• Suzuki LT-A500X KingQuad 500 AXi 4x4 (2009-2025)
• Suzuki LT-A500XP KingQuad 500 AXi EPS (2009-2025)
• Suzuki KingQuad 500 AXi SE+ / Special Edition (2014-2025)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
