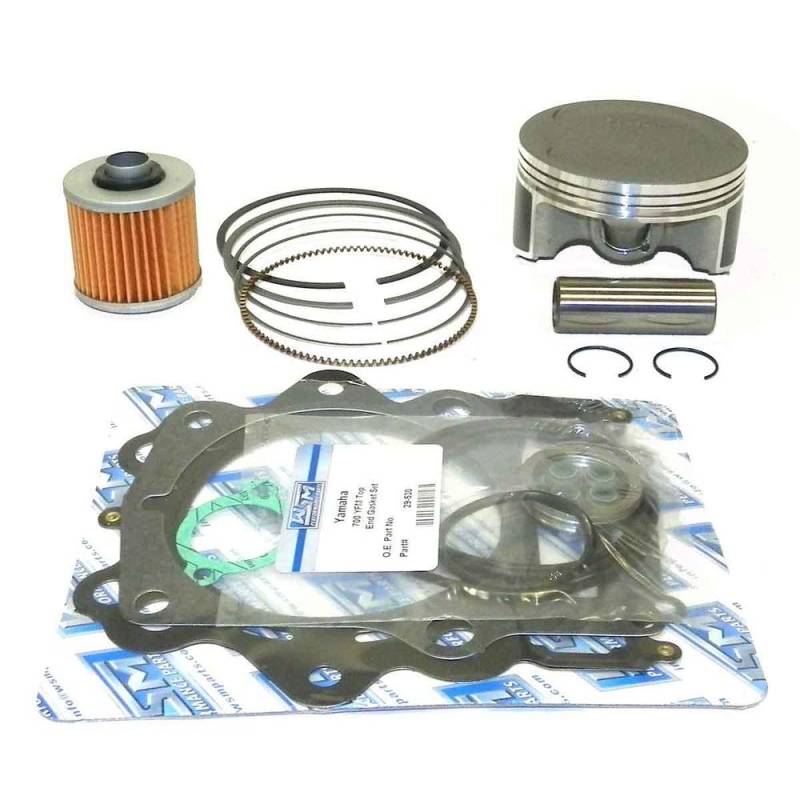

Top End Rebuild Kit 102.25Mm +0.25Mm Over Compatible With 2006-2025 Yamaha Raptor 700R Se Special

OEM PART NUMBERS:
• Piston Std: 1S3-11631-10-00 / 1S31163110000
• Piston Std Superseded: 2BG-11631-00-00 / 2BG1163100000
• Piston Ring Set: 1S3-11603-10-00 / 1S31160310000
• Piston Pin: 5VK-11633-00-00 / 5VK1163300000
• Circlips: 93450-24154-00 / 934502415400
• Cylinder: 1S3-11310-01-00 / 1S31131001000
• Cylinder Head Gasket: 3B4-11181-00-00 / 1S3-11181-00-00
• Cylinder Base Gasket: 1S3-11351-00-00 / 1S31135100000
• Chain Tensioner Gasket: 4DW-12213-00-00 / 4DW1221300000

SPECIFICATIONS:
• Type: Top End Rebuild Kit
• Bore Size: 102.25mm (+0.25mm Over)
• Oversize: +0.25mm Over
• Standard Bore: 102mm
• Stroke: 84mm
• Displacement: 686cc
• Compression Ratio: 9.2:1
• Engine Type: 686cc SOHC Liquid-Cooled Single-Cyl 4-Stroke EFI
• Condition: New

APPLICATIONS:
• Yamaha YFM700R Raptor 700R (2006-2025)
• Yamaha Raptor 700R SE Special Edition (2007-2025)
• Yamaha Raptor 700R GYTR Edition (2007)
• Yamaha YFM700 Raptor 700 (2006-2013)
