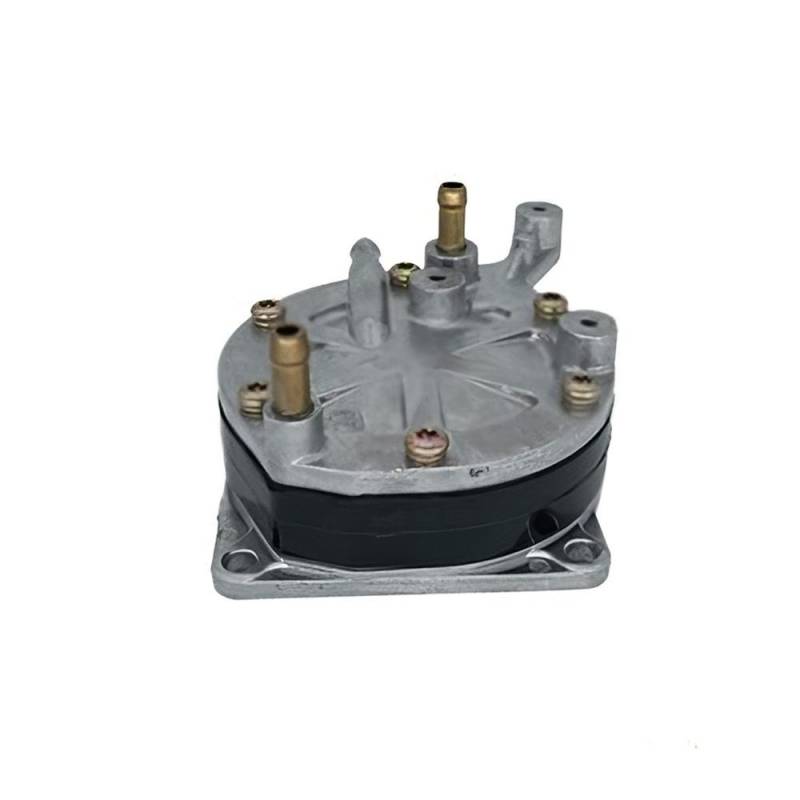

Low Pressure Diaphragm Fuel Pump Compatible With 1999-2006 Kawasaki Jet Ski Ultra 150 Stx-R 1200 900

004-811A1
Replaces OEM Part Numbers:

Kawasaki 59336-3717, 593363717
Kawasaki 59336-3718, 593363718

Specifications:

Voltage: 12V / 1.4A
Pressure: 2.5-4 PSI
Flow: 350 ml/min
Type: Diaphragm Carburetor Mount
Inlet: 4.8mm | Outlet: 7.8mm
Years: 1999-2006

Applications:

Kawasaki 900 STS 2001-2002 | 900 STX 2000-2006 | 1100 ZXI 2000-2003 | 1200 STX-R 2002-2005 | Ultra 150 1200cc 1999-2005

Direct-Fit Replacement Fuel Pump for Kawasaki PWC
Engineered specifically for Kawasaki carbureted personal watercraft, this low-pressure diaphragm fuel pump delivers precise fuel flow at 350 ml/min to your carburetors. Operating at 2.5-4 PSI with only 1.4 amps of current draw, this pump mounts directly to the rear carburetor assembly without any wiring modifications. The durable Bakelite and aluminum construction provides excellent heat resistance and protection against corrosive solvents. Each unit is individually tested to verify correct fuel pressure output and flow rate, preventing premature component failure. Designed for demanding marine conditions.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $201.01
Sale: $114.86
Save: 43%
Save: $86.15
Qty:
Free Shipping!

Description

Applications:

Kawasaki Jet Ski 900cc / 1100cc / 1200cc (1999-2006):
900 STS 2001, 2002 | 900 STX 2000, 2001, 2002, 2003, 2004, 2005, 2006 | 1100 ZXI 2000, 2001, 2002, 2003 | 1200 STX-R 2002, 2003, 2004, 2005 | Ultra 150 1200cc 1999, 2000, 2001, 2002, 2003, 2004, 2005

Details

Shipping Information

  • Item Requires Shipping
  • 6.0 lbs.
  • W8.0000” x H4.0000” x L14.0000”
  • Free Shipping!
