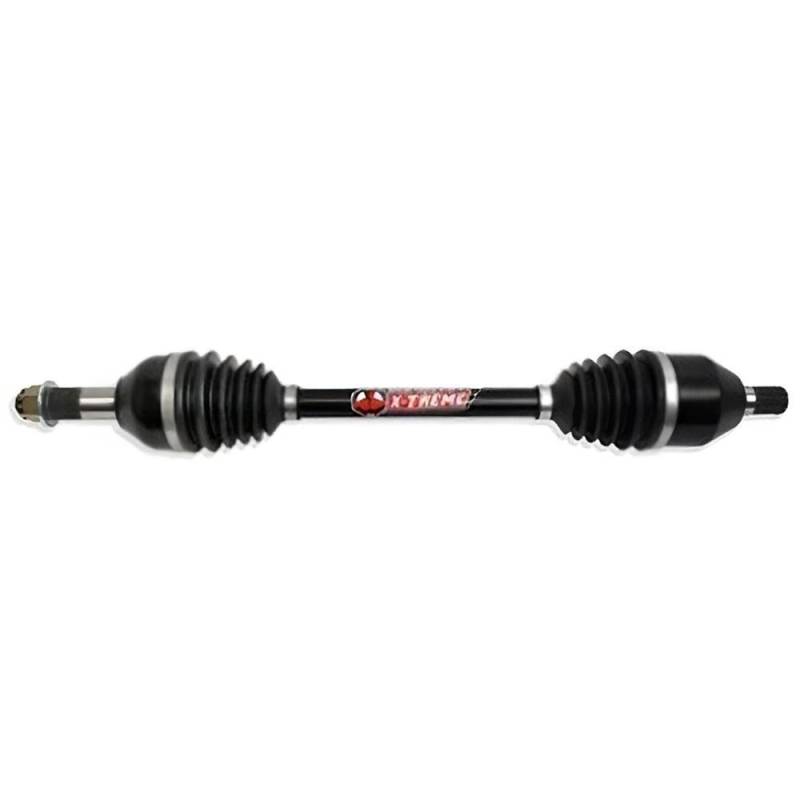

Heavy Duty Front Right/Left (Interchangeable) Cv Axle Compatible With Yamaha Utv Yxz1000r Yxz1000r

OEM PART NUMBERS:
• Yamaha: 2HC-2510F-00-00 / 2HC2510F0000
• Yamaha: 2HC-2510F-01-00 / 2HC2510F0100
• Yamaha: 2HC-2510J-00-00 / 2HC2510J0000
• Yamaha: 2HC-2518F-00-00 / 2HC2518F0000
• Yamaha: 2HC-2518F-01-00 / 2HC2518F0100

SPECIFICATIONS:
• Axle Position: Front Right or Left (Interchangeable) - Heavy Duty
• Shaft Type: CV (Constant Velocity) Heavy Duty Double Offset Joint
• Inboard Splines: 24 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 749 mm (29.5")
• Shaft Diameter: 7/8" (22mm)
• Thread Size: M24 x 1.5
• Material: 4340 Chromoly Steel (Heavy Duty)
• Condition: New

YAMAHA UTV APPLICATIONS:
• YXZ1000R 998cc Liquid-Cooled DOHC 12-Valve Inline 3-Cyl 4-Stroke (2016-2017)
• YXZ1000R SS / SE / XT-R 998cc Liquid-Cooled DOHC 12-Valve Inline 3-Cyl 4-Stroke (2018-2025)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
