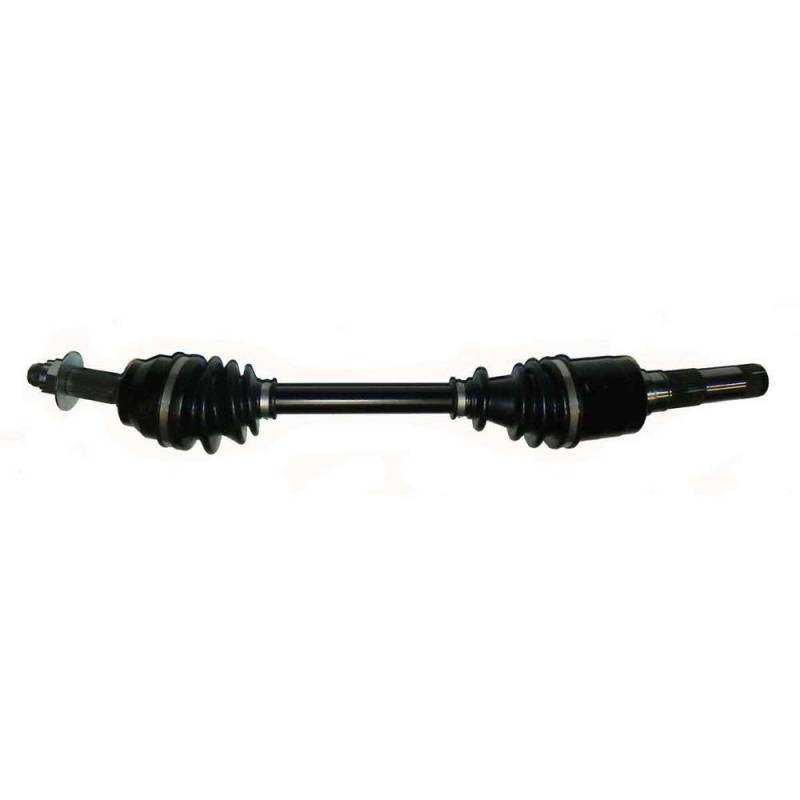

Heavy Duty Rear Right Cv Axle Shaft Assembly Compatible With John Deere Gator Xuv 550 S4 Gator 570Cc

OEM PART NUMBERS:
• John Deere: AM140127
• John Deere: AM145031
• John Deere: AM146271

SPECIFICATIONS:
• Axle Position: Rear Right (Passenger Side)
• Shaft Type: CV (Constant Velocity) Heavy Duty
• Inboard Splines: 28 Teeth
• Outboard Splines: 24 Teeth
• Compressed Length: 646.5 mm (25 7/16")
• Shaft Diameter: 15/16" (HD Oversized)
• Material: 4340 Chromoly Steel (Heavy Duty)
• Condition: New

JOHN DEERE UTV APPLICATIONS:
• Gator XUV 550 4x4 570cc Air-Cooled V-Twin (Briggs & Stratton Vanguard) )
• Gator XUV 550 S4 4x4 570cc Air-Cooled V-Twin (Briggs & Stratton Vanguard) )
• Gator XUV 560 4x4 (2016-2017)
• Gator XUV 560E 4x4 (2018-2020)
• Gator XUV 590i 4x4 (2016-2017)
• Gator XUV 590E 4x4 (2018-2019)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
