OEM PART NUMBERS:
• Yamaha: 28P-2510F-03-00 / 28P2510F0300
• Yamaha: 28P-2510F-10-00 / 28P2510F1000
• Yamaha: 28P-2530V-10-00 / 28P2530V1000
• Yamaha: 2UD-2518E-10-00 / 2UD2518E1000
• Yamaha: 2UD-2531H-00-00 / 2UD2531H0000

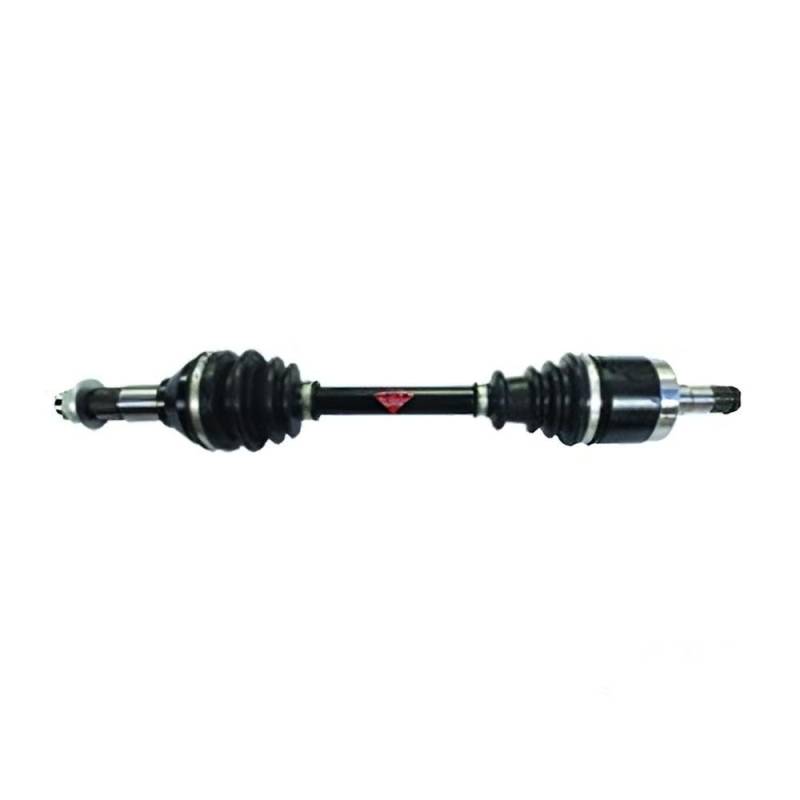

SPECIFICATIONS:
• Axle Position: Rear Right or Left (Interchangeable)
• Shaft Type: CV (Constant Velocity) Double Offset Joint
• Inboard Splines: 23 Teeth
• Outboard Splines: 27 Teeth
• Compressed Length: 552 mm (21.75")
• Shaft Diameter: 13/16" (21mm)
• Thread Size: M20 x 1.5
• Material: 4140 Chromoly Steel
• Condition: New
YAMAHA ATV APPLICATIONS:
• Grizzly 700 FI Auto 4x4 EPS 686cc Liquid-Cooled SOHC 4-Valve Single-Cyl 4-Stroke (2014-2025)
• YFM700G Grizzly 700 EPS
• Kodiak 700 (2016-2025)
• Hunter, SE, XT-R editions
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
