CROSS REFERENCE PART NUMBERS:
• Honda 13101-HP5-600
• Pro-X 01.1487.025
ITEM SPECIFICATIONS:
• Component: Piston Kit (0.25mm Oversize)
• Piston Size: 86.75mm (0.25mm Oversize)
• Bore x Stroke: 86.5mm x 71.5mm
• Displacement: 420cc
• Compression Ratio: 9.9:1

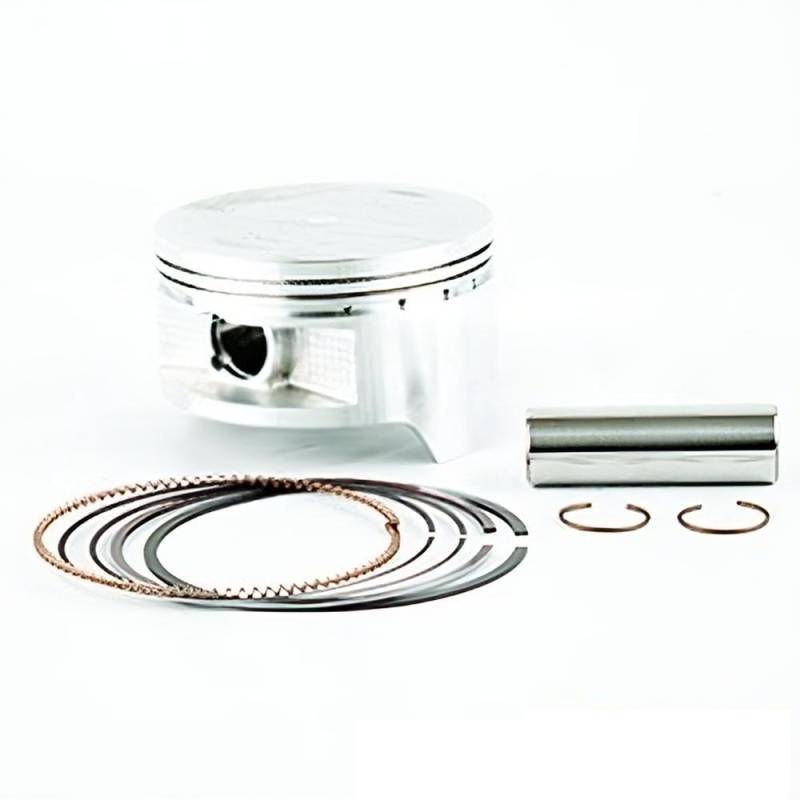

• Kit Contents: Piston, Rings, Wrist Pin, Circlips
• Material: Cast Aluminum Alloy Piston
• Engine: 420cc Liquid-Cooled Single-Cylinder 4-Stroke OHV
• Model Years: 2007-2025
COMPATIBLE MODELS:
Honda TRX420 FourTrax Rancher ATV:
• TRX420FM / TRX420FE (4x4 / 4x4 ES) (2007-2025)
• TRX420TM / TRX420TE (2WD / 2WD ES) (2007-2025)
• TRX420FA (4x4 AT) (2009-2014)
• TRX420FPA / TRX420FPM (4x4 Power Steering) (2009-2014)
PRODUCT DETAILS:
This piston kit is a direct replacement for the Honda TRX420 FourTrax Rancher utility ATV produced from 2007 through 2025 with the 420cc liquid-cooled single-cylinder 4-stroke OHV engine. The 86.75mm 0.25mm oversize piston is designed for the 0.25mm overbored cylinder providing proper piston-to-wall clearance for optimal ring seal and compression in the TRX420 Rancher engine. Each kit includes cast aluminum alloy piston, precision-fitted piston rings, hardened wrist pin, and retaining circlips for all Honda TRX420 Rancher applications. Manufactured using low-expansion piston alloy and precision machined on CNC equipment for consistent dimensions and reliable performance in utility and recreational ATV riding conditions. The TRX420 Rancher is a versatile utility ATV featuring a dependable liquid-cooled 4-stroke OHV engine with fuel injection for excellent trail riding and work performance. Installs directly into the 0.25mm oversize 86.75mm cylinder bore without modifications for piston replacement or top-end rebuild on all Honda TRX420 FourTrax Rancher ATV models.
