CROSS REFERENCE PART NUMBERS:
• Yamaha 2BG-11631-00-00
• Yamaha 1S3-11631-10-00 (Cross Reference)
• Yamaha 1S3-11631-00-00 (Cross Reference)
• Pro-X 01.2714.C
ITEM SPECIFICATIONS:
• Component: Piston Kit (Standard Bore C Grade)
• Piston Size: 101.96mm (C Grade)
• Bore x Stroke: 102.0mm x 84mm (Standard)
• Displacement: 686cc (Single-Cylinder)
• Compression Ratio: 10.0:1

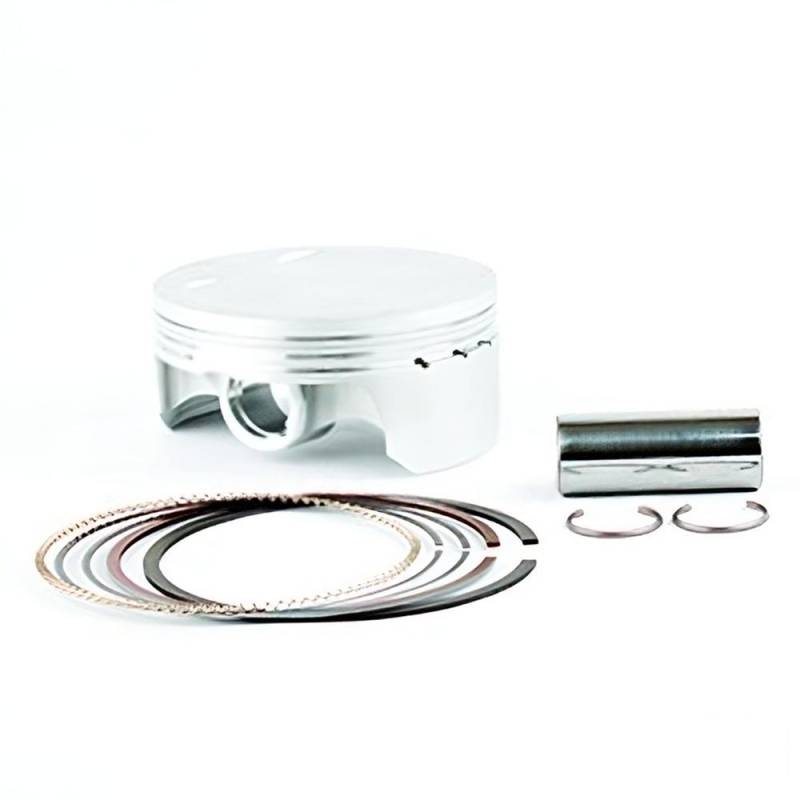

• Kit Contents: Piston, Rings, Wrist Pin, Circlips
• Material: Forged Aluminum Alloy Piston
• Engine: Liquid-Cooled 4-Stroke SOHC (EFI)
• Model Years: 2014-2025 (Yamaha Grizzly/Kodiak/Raptor/Viking 700)
COMPATIBLE MODELS:
Yamaha 686cc ATVs:
• Grizzly 700 (2014-2015, 2019-2025) incl. Hunter/Hunting/SE/XT-R
• Kodiak 700 (2019-2025) incl. Hunter/Hunting/SE
• Raptor 700 (2015-2025) incl. R/SE
Yamaha 686cc UTVs:
• Viking 700 (2014-2025) incl. Hunter/Hunting/Ranch/SE/Utility
• Viking VI 700 (2015-2025) incl. Hunter/Hunting/Ranch
PRODUCT DETAILS:
Direct replacement piston kit engineered for the Yamaha 686cc liquid-cooled 4-stroke SOHC EFI engine powering the Grizzly 700 utility ATV, Kodiak 700 utility ATV, Raptor 700 sport ATV, and Viking 700 side-by-side UTV models. The 101.96mm C grade piston delivers factory-spec clearance for reliable ring seal and consistent 4-stroke performance in standard bore cylinders. Kit comes complete with forged aluminum alloy piston, precision-fitted piston rings, hardened wrist pin, and retaining circlips for a comprehensive top-end rebuild. Precision machined on CNC equipment using premium forged aluminum alloy for reliable sealing and consistent power delivery in demanding off-road and utility applications.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
