CROSS REFERENCE PART NUMBERS:
• Yamaha 1S3-11631-00-00
• Yamaha 1S3-11631-10-00
• Pro-X 01.2706.B
ITEM SPECIFICATIONS:
• Component: Piston Kit (Standard Bore B Grade)
• Piston Size: 101.95mm (Standard Bore B Grade)
• Bore x Stroke: 102.0mm x 84mm (Standard)
• Displacement: 686cc (Single-Cylinder)
• Compression Ratio: 9.2:1
• Kit Contents: Piston, Rings, Wrist Pin, Circlips
• Material: Forged Aluminum Alloy Piston
• Engine: Liquid-Cooled 4-Stroke SOHC
• Model Years: 2006-2014 (Yamaha Grizzly/Raptor/Rhino 700)
COMPATIBLE MODELS:
Yamaha 686cc ATVs:
• Grizzly 700 (2007-2013) — Hunter, SE, Ducks, Outdoorsman Editions
• Raptor 700 (2006-2014) — R, SE Editions
Yamaha 686cc UTVs:
• Rhino 700 (2008-2013) — Hunter, SE, Ducks, Sport Editions
PRODUCT DETAILS:

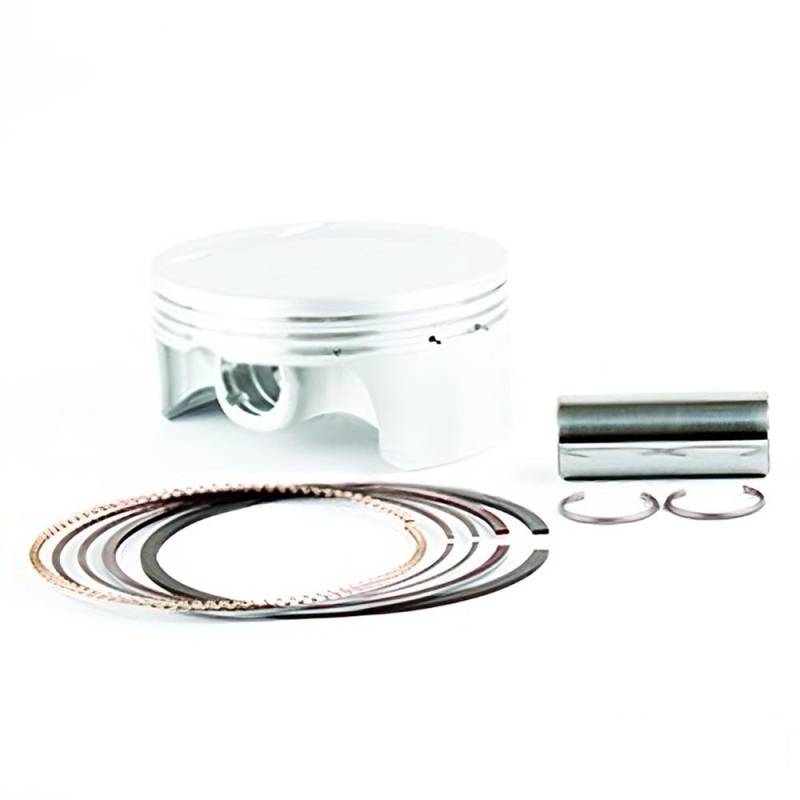

Premium standard bore B grade piston kit built for the Yamaha 686cc liquid-cooled 4-stroke SOHC single-cylinder engine used in the Grizzly, Raptor, and Rhino 700 platforms. The 101.95mm forged piston provides factory-specified tolerances for optimal ring seal and compression in standard bore applications across these versatile ATV and UTV models. Complete kit includes forged aluminum alloy piston, precision-fitted piston rings, hardened wrist pin, and retaining circlips for a full top-end rebuild of the Yamaha 686cc engine. CNC machined from premium forged aluminum alloy for consistent dimensional accuracy and reliable long-term performance across all Yamaha 700 ATV and UTV models.
