CROSS REFERENCE PART NUMBERS:
• Yamaha 1P8-11631-00-A0
• Suzuki 12110-37F30-0F0
• Pro-X 01.2321.A
ITEM SPECIFICATIONS:

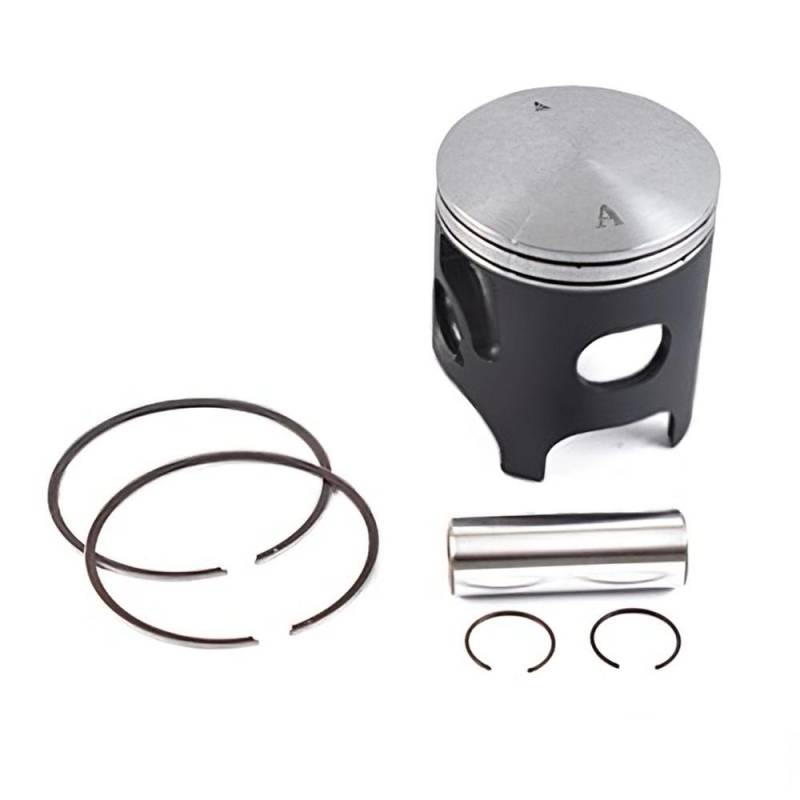

• Component: Piston Kit (Size A, Standard Bore)
• Piston Size: 66.35mm (Size A)
• Bore x Stroke: 66.4mm x 72.0mm
• Displacement: 249cc
• Kit Contents: Piston, Ring, Wrist Pin, Circlips
• Material: Cast Aluminum Alloy Piston
• Engine: 249cc Liquid-Cooled 2-Stroke Reed-Valve Single-Cylinder
• Model Years: 1999-2025 (YZ250), 2016-2025 (YZ250X), 2003-2012 (RM250)
COMPATIBLE MODELS:
Yamaha YZ250 / YZ250X / Suzuki RM250:
• Yamaha YZ250 (1999-2025)
• Yamaha YZ250X (2016-2025)
• Suzuki RM250 (2003-2012)
PRODUCT DETAILS:
This piston kit is a direct replacement for the Yamaha YZ250 motocross bike 1999-2025, YZ250X cross country 2016-2025, and Suzuki RM250 motocross 2003-2012 with the 249cc liquid-cooled 2-stroke reed-valve single-cylinder engine. The 66.35mm Size A piston is designed for the standard 66.4mm cylinder bore providing factory-specified piston-to-wall clearance for optimal ring seal and compression in the high-revving YZ250 and RM250 2-stroke engine. Each kit includes cast aluminum alloy piston, precision-fitted piston ring, hardened wrist pin, and retaining circlips for all Yamaha YZ250 YZ250X and Suzuki RM250 applications. Manufactured using low-expansion piston alloy and precision machined on CNC equipment for consistent dimensions and reliable performance in motocross and off-road racing conditions. The YZ250 features a liquid-cooled 2-stroke engine with YPVS power valve and five-speed transmission for competitive motocross racing. Installs directly into the standard 66.4mm cylinder bore without modifications for piston replacement or top-end rebuild on all YZ250 YZ250X and RM250 motocross bikes.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
