New Piston Kit 101.94Mm Compatible With Yamaha Grizzly 700 Hunter 2007-2013 Raptor 700 2006-2014

CROSS REFERENCE PART NUMBERS:
• Yamaha 1S3-11631-00-00
• Yamaha 1S3-11631-10-00
• Pro-X 01.2706.A

ITEM SPECIFICATIONS:
• Component: Piston Kit (Standard Bore A Grade)
• Piston Size: 101.94mm (Standard Bore A Grade)
• Bore x Stroke: 102.0mm x 84mm (Standard)
• Displacement: 686cc (Single-Cylinder)
• Compression Ratio: 9.2:1

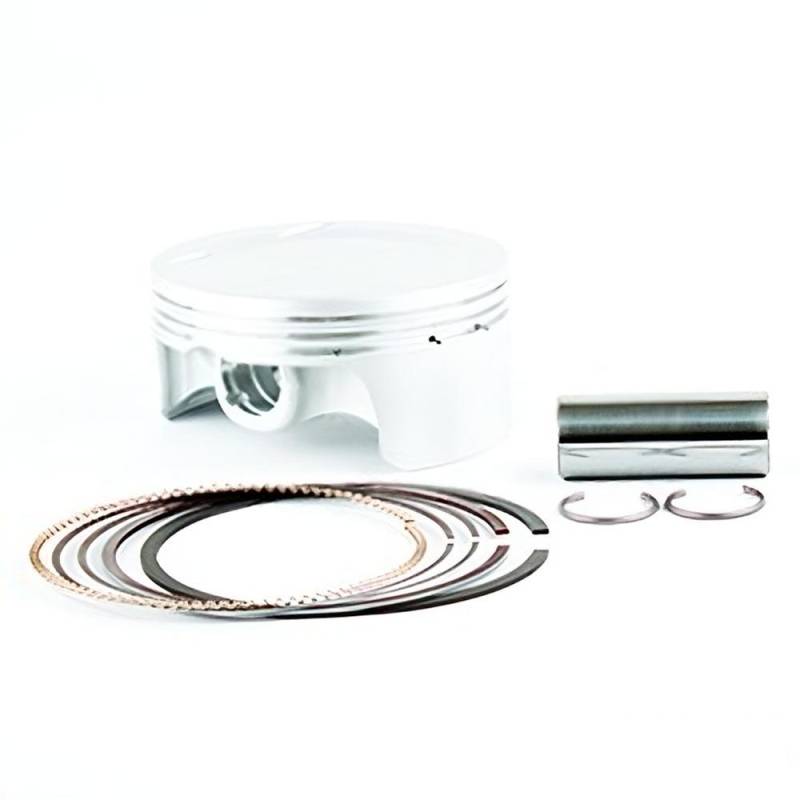

• Kit Contents: Piston, Rings, Wrist Pin, Circlips
• Material: Forged Aluminum Alloy Piston
• Engine: Liquid-Cooled 4-Stroke SOHC
• Model Years: 2006-2014 (Yamaha Grizzly/Raptor/Rhino 700)

COMPATIBLE MODELS:
Yamaha 686cc ATVs:
• Grizzly 700 (2007-2013) — Hunter, SE, Ducks, Outdoorsman Editions
• Raptor 700 (2006-2014) — R, SE Editions
Yamaha 686cc UTVs:
• Rhino 700 (2008-2013) — Hunter, SE, Ducks, Sport Editions

PRODUCT DETAILS:
This standard bore A grade piston kit is designed for the Yamaha 686cc liquid-cooled 4-stroke SOHC single-cylinder engine used across the Grizzly 700, Raptor 700, and Rhino 700 model families. The 101.94mm A grade piston provides factory-specified piston-to-wall clearance for optimal ring seal and compression in standard bore cylinders. Each kit includes forged aluminum alloy piston, precision-fitted piston rings, hardened wrist pin, and retaining circlips for the Yamaha 686cc engine. Manufactured using premium forged aluminum alloy and precision machined on CNC equipment for consistent dimensions and reliable performance in demanding ATV and UTV applications.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
